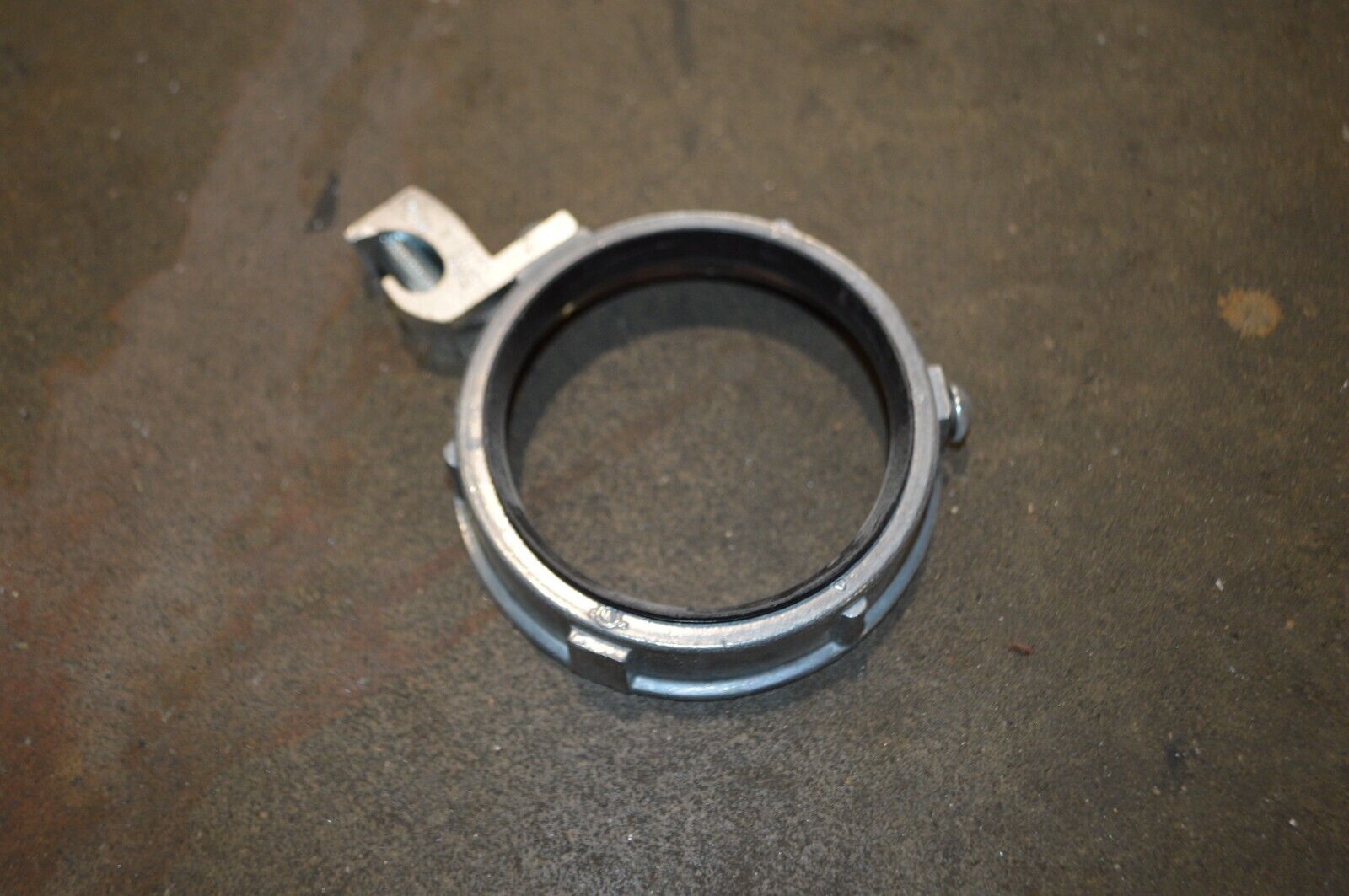

10x Emerson GBL-500 Cast Zinc Aluminum Lug Insulated Grounding Bushing 1-1/2"
Roll over image to zoom in Click on image to zoom
10x Emerson GBL-500 Cast Zinc Aluminum Lug Insulated Grounding Bushing 1-1/2"

10x Emerson GBL-500 Cast Zinc Aluminum Lug Insulated Grounding Bushing 1-1/2"

Northside Material Brokers
Price:
$27.63

Description


Part Description:
Conduit Grounding Bushing; Type Threaded, Set Screw; Trade Size 1-1/2 Inch; Wire Size 14 to 1/0 AWG; Lug Type Tin Plated Aluminum; Conductor Material Copper/Aluminum; Throat Type Insulated; Diameter 2.16 Inch; Height 0.6 Inch; Material Die Cast Zinc Body, Zinc Plated Steel Set Screw, Zinc Plated Steel Clamping Screw; Approval UL 467, CSA C22.2; Used On Rigid Conduit/IMC; Applicable Standard NEMA FB-1; Temperature Rating 150 Deg C

Specifications

 Approval  UL 467, CSA C22.2
 Conductor Material  Copper/Aluminum
 Country of Origin  IN
 Diameter REF  2.16 IN
 Lug Type  Tin Plated Aluminum
 Material  Die Cast Zinc Body, Zinc Plated Steel Set Screw, Zinc Plated Steel Clamping Screw
 Package Height  0.580
 Package Length  3.800
 Package Weight  0.180
 Package Width  5.300
 Product Class  Grounding Bushing
 Short Description  1-1/2", 14 to 1/0 AWG Copper/Aluminum, Die Cast Zinc, Insulated, Threaded, IMC/Rigid Conduit Grounding Bushing
 Smart Image Thumb
 Smart Long Desc  Conduit Grounding Bushing; Type Threaded, Set Screw; Trade Size 1-1/2 Inch; Wire Size 14 to 1/0 AWG; Lug Type Tin Plated Aluminum; Conductor Material Copper/Aluminum; Throat Type Insulated; Diameter 2.16 Inch; Height 0.6 Inch; Material Die Cast Zinc Body, Zinc Plated Steel Set Screw, Zinc Plated Steel Clamping Screw; Approval UL 467, CSA C22.2; Used On Rigid Conduit/IMC; Applicable Standard NEMA FB-1; Temperature Rating 150 Deg C
 Throat Type  Insulated
 Trade Size REF  1-1/2 IN
 Type  Threaded, Set Screw
 Used On  Rigid Conduit/IMC
 Wire Size  14 to 1/0 AWG
