Description

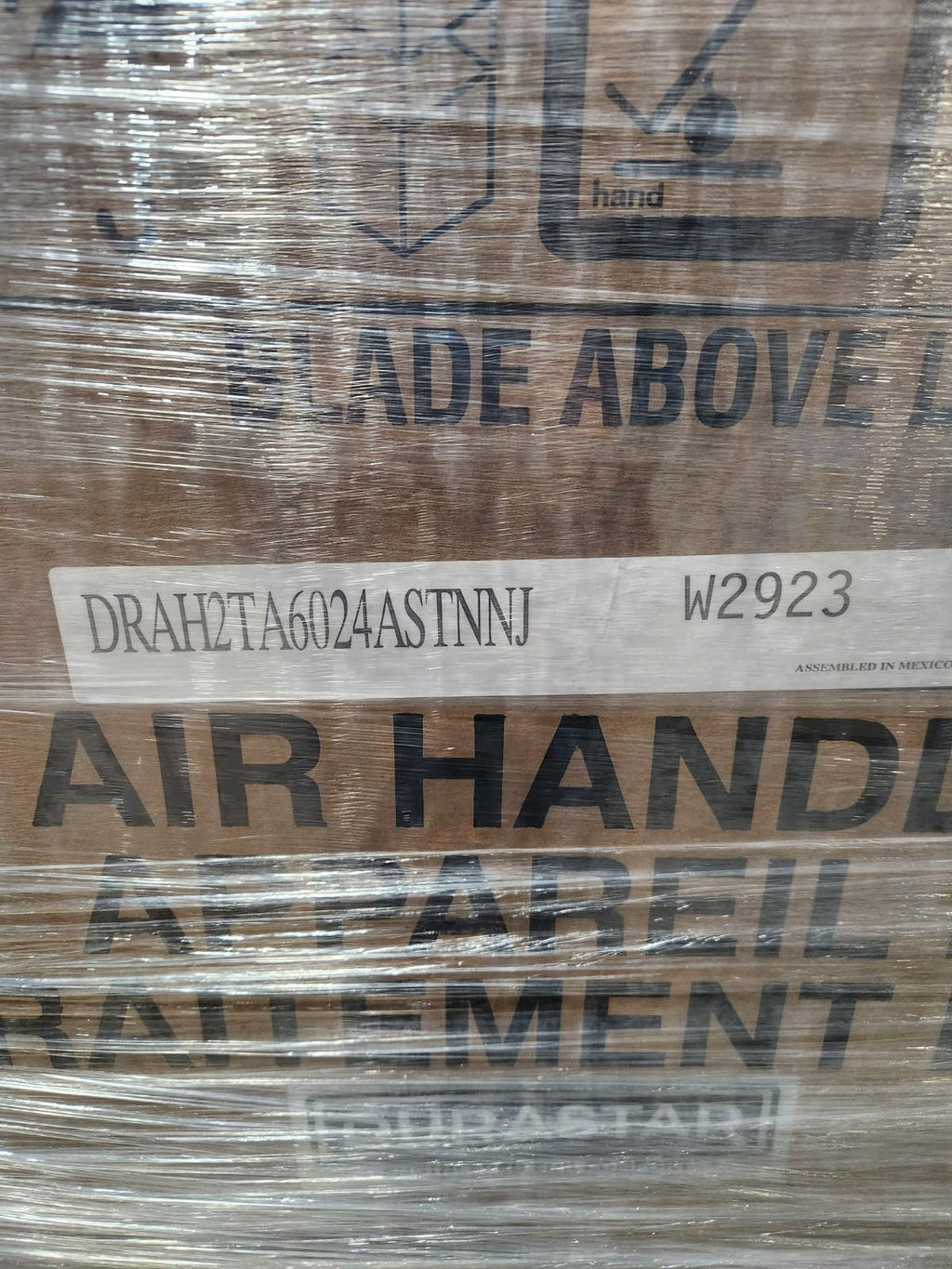

DURASTAR DRAH2TA6024ASTNNJ 5 Ton - Multi-Position Two-Stage Constant Torque ECM Air Handler- 208/240V - 24-1/2 in.
*Sturdy steel cabinet with one inch of foil faced insulation for quiet and efficient comfort. *Aluminum Indoor Coil Design: Constructed of aluminum fins bonded to internally grooved aluminum tubing and are more corrosion resistant Versatile 4-Way Convertible Compact Design: Allows for up flow, downflow, horizontal left, and horizontal right applications even in the smallest of spaces *Less than 2% Cabinet Air Leakage at 1-inch H2O: When tested in accordance with ASHRAE Standard 193 Coils are tested at the factory with an extensive refrigerant leak check
PLEASE RESEARCH THIS MODEL AND MAKE SURE IT WILL WORK FOR YOUR APPLICATION PRIOR TO PURCHASE
***SHIPS FREE TO A COMMERCIAL ADDRESS. RESIDENTIAL AND LIFTGATE DELIVERY EXTRA***
Specs from the manufacturer: A2L Compatible: No BTU: 60000 BTU Cooling Rating: 60,000 Btu/h Blower Type: Multispeed Coil Type: N Collection: DRAH2TA Communicating: Non-Communicating Configuration: Multi-Position Fan Speeds: 5 Height: 55-1/2 in Liquid Line (OD): 3/8 in MBH: 60 Material: Steel Max CFM: 1930 cfm Phase: Single Phase Power Source: Electric Refrigerant: R-410A Refrigeration Control Type: TXV Stages: Two Suction Line (OD): 7/8 in Tonnage: 5 Ton UL Listed: Yes UPC: 781889900567 Volts: 208/230V Weight: 161 lb
Width: 24-1/2 in
