Description

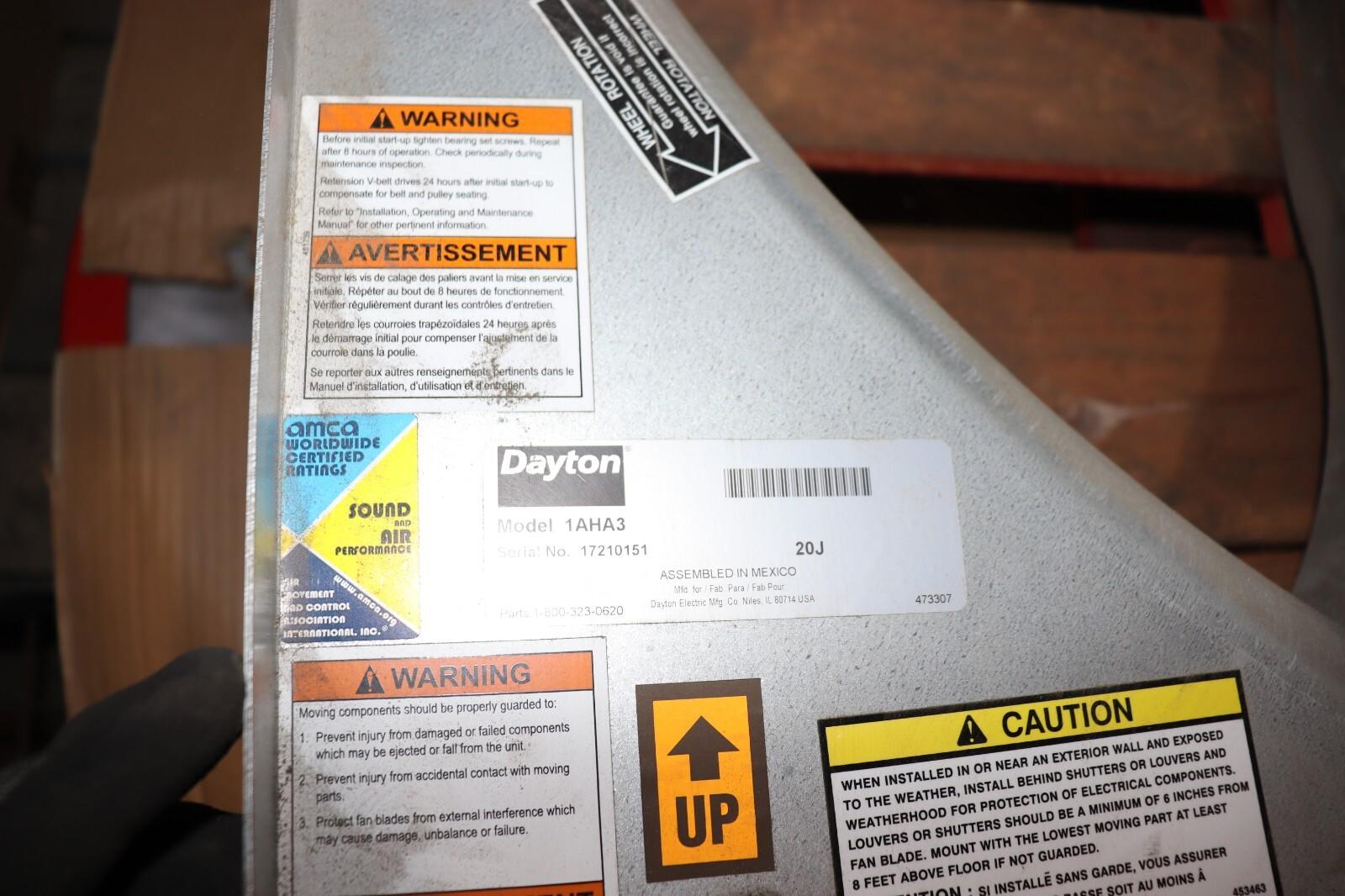

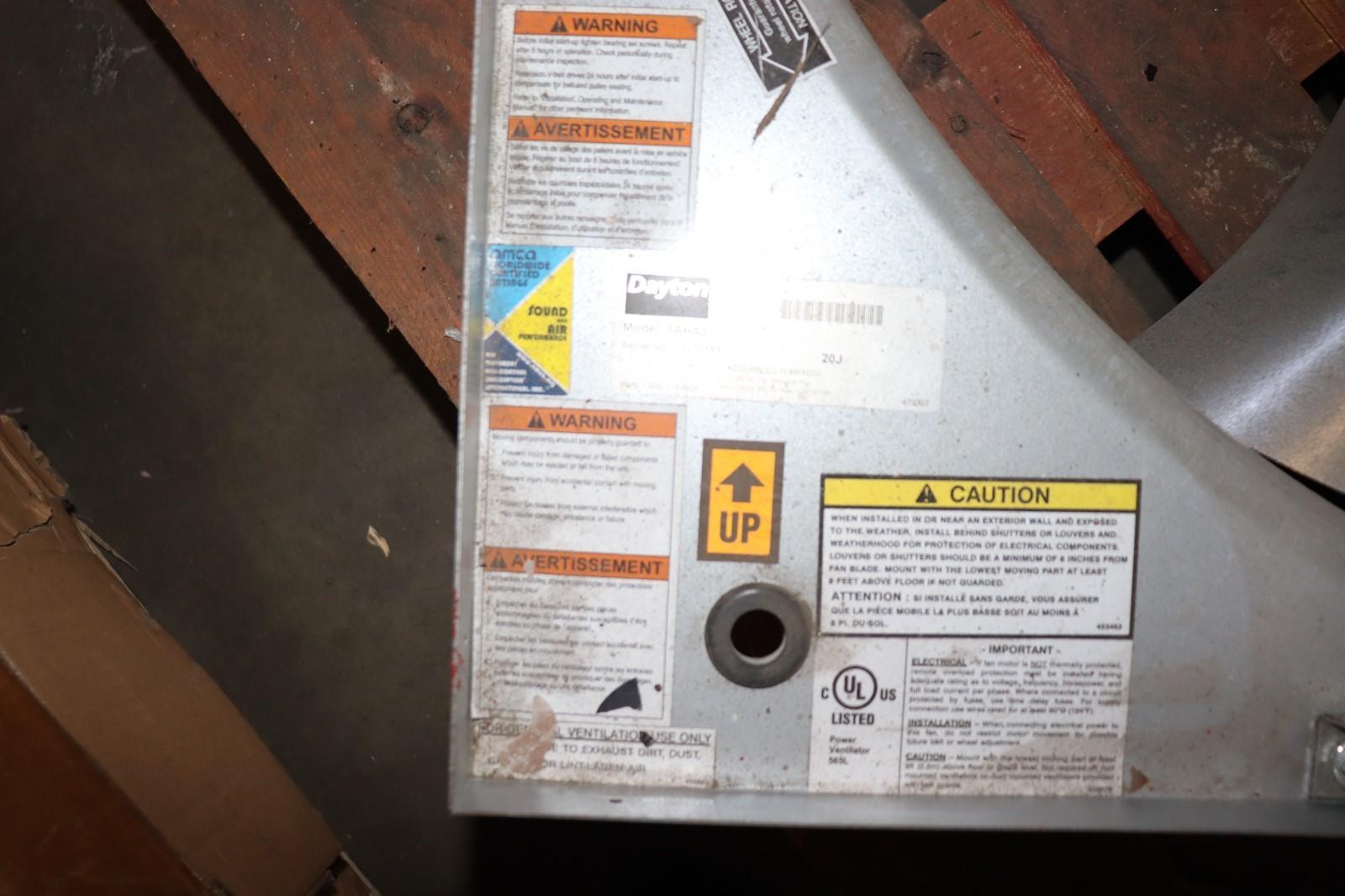

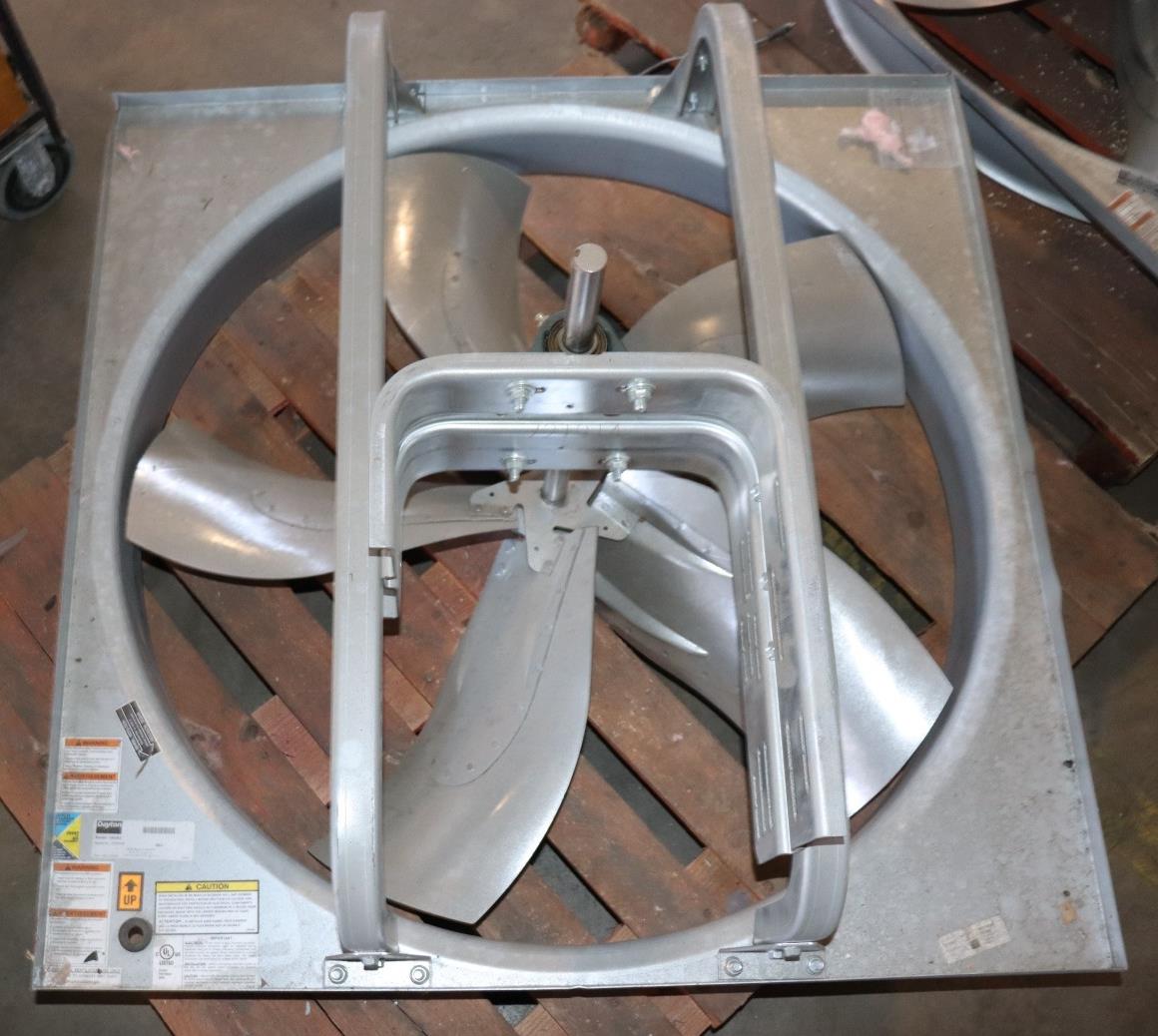

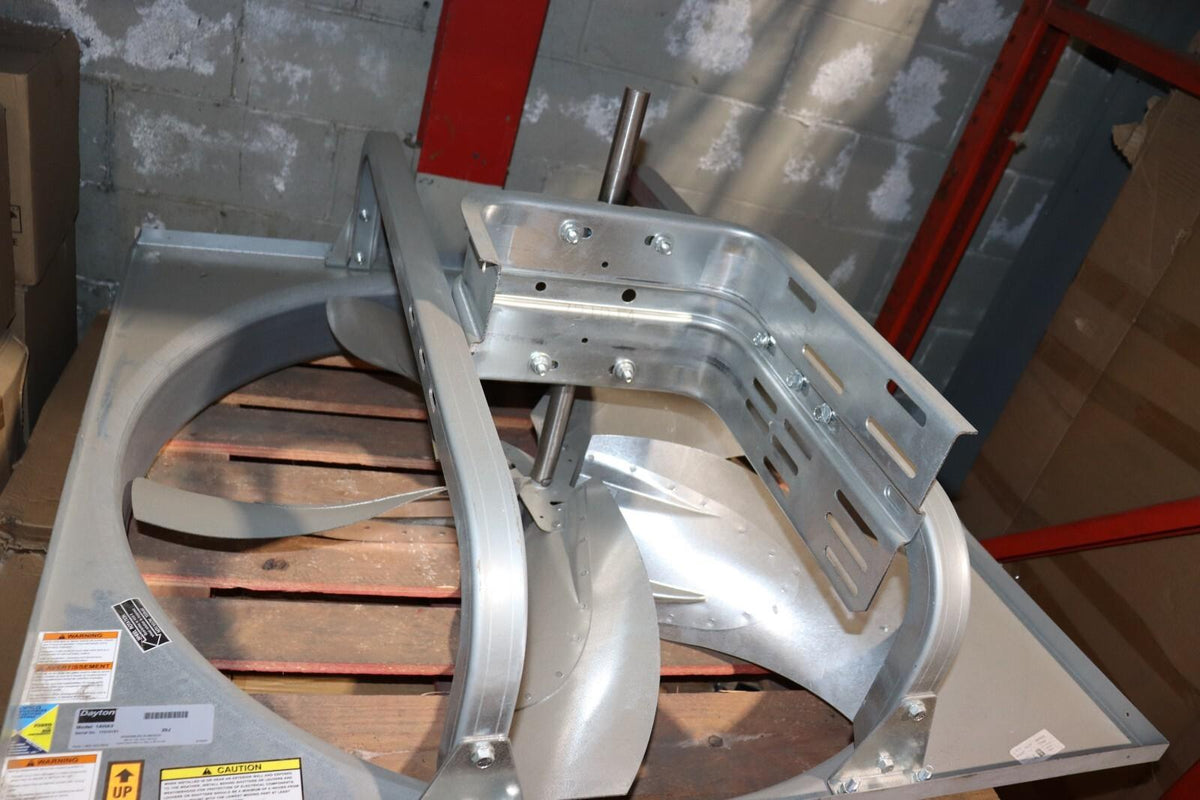

The Dayton 1AHA3 is a 36-inch, belt drive panel exhaust fan designed for large- scale commercial and industrial ventilation.
Key Specifications:

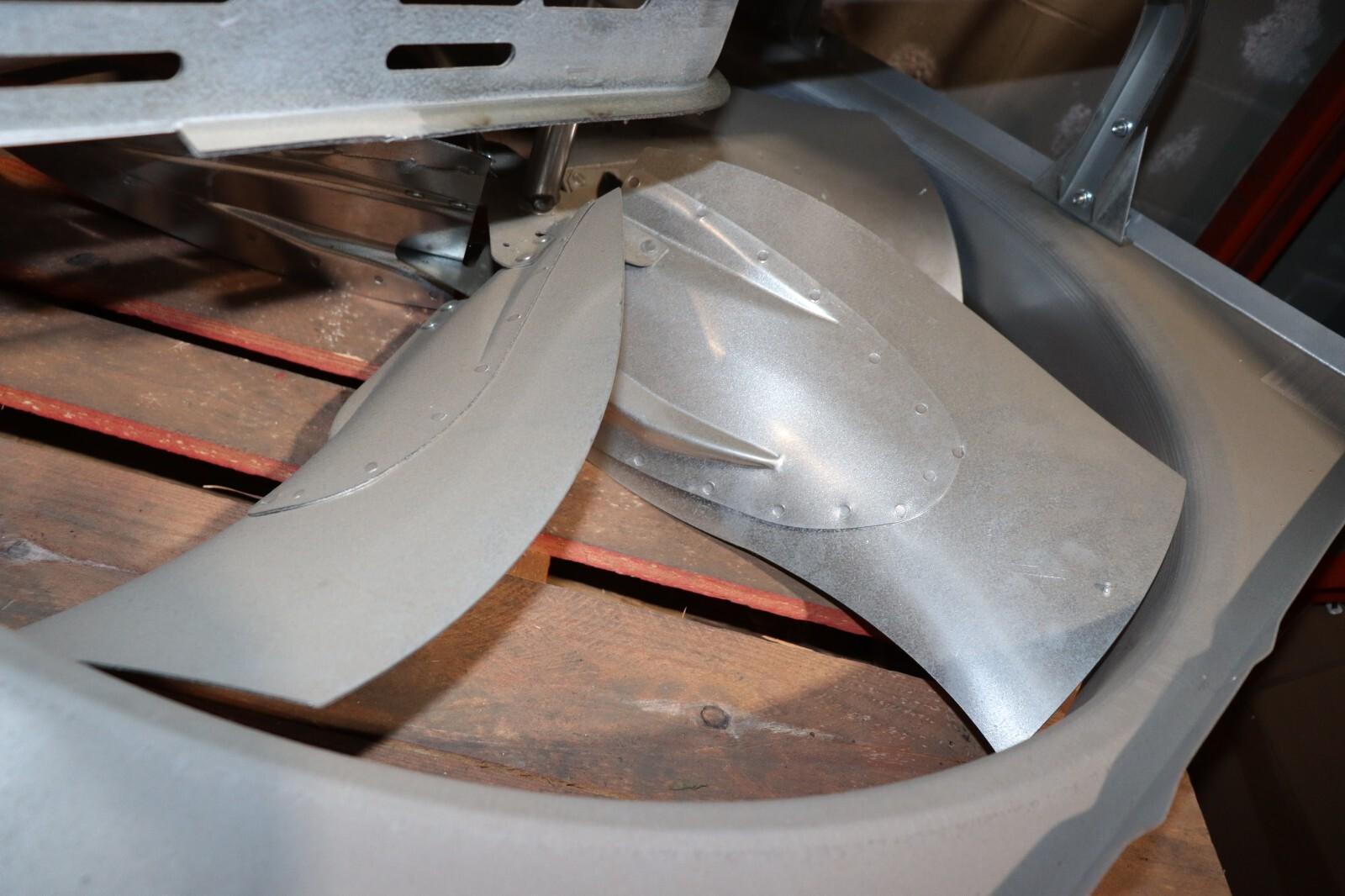

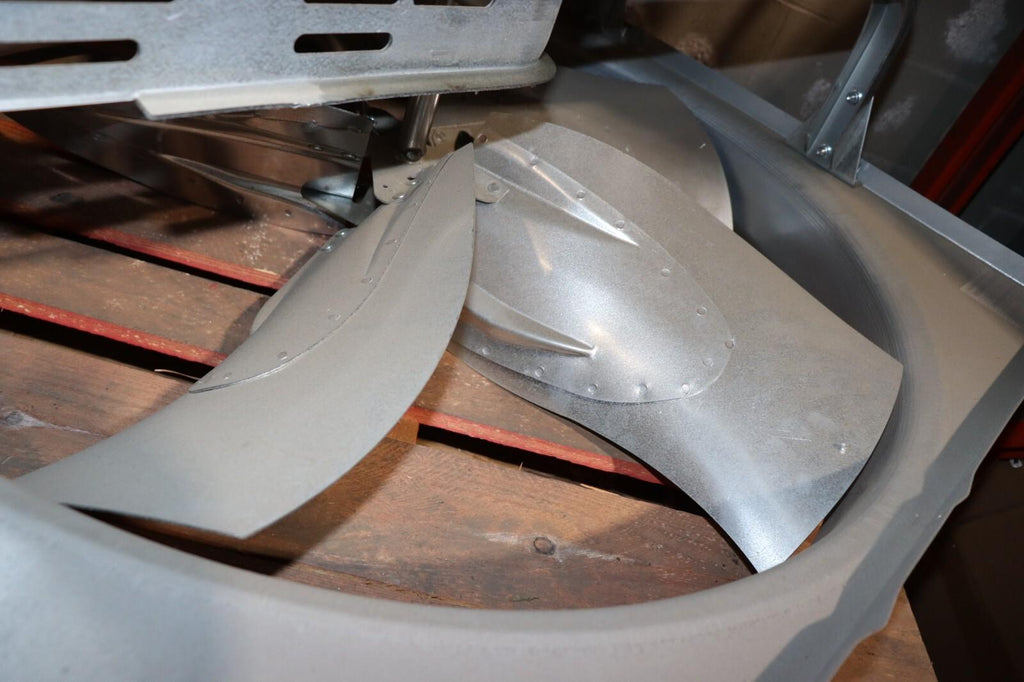

- Blade Diameter: 36 inches (5 steel blades)
- Airflow Capacity: 12,492 CFM to 19,733 CFM (dependent on motor and drive package)
- Speed Range: 433 RPM (minimum) to 684 RPM (maximum)
- Motor Requirements: Ships less motor/drive package (requires user-supplied 1/2 hp to 2 hp motor)
- Cut-Out Dimensions: 38-1/2 in x 38-1/2 in
- Shipping Weight: Approx. 84 lbs.
Design & Features:

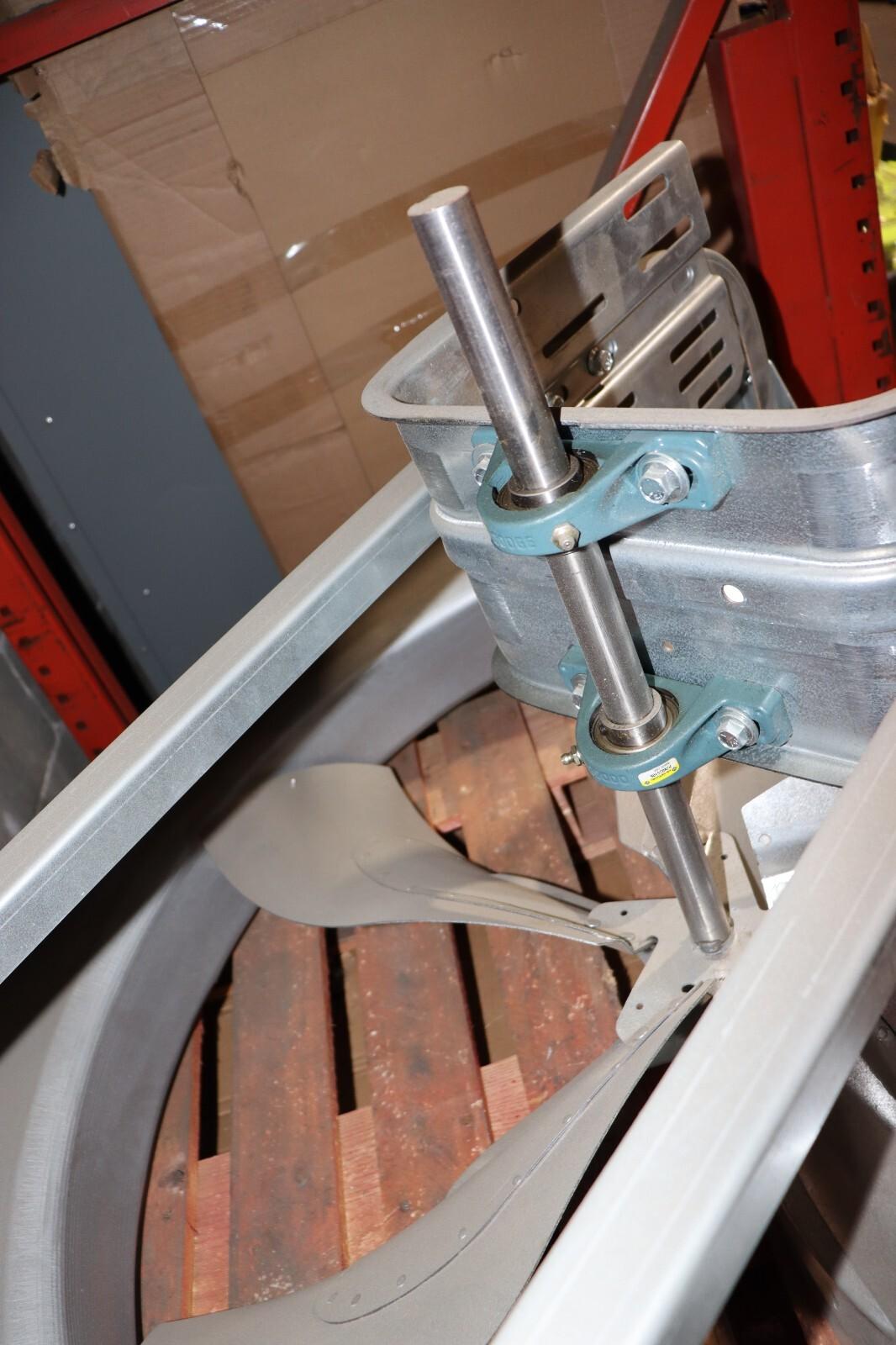

- Belt-Drive Operation: Offers quieter performance and adjustable blade speed control compared to direct-drive alternatives.

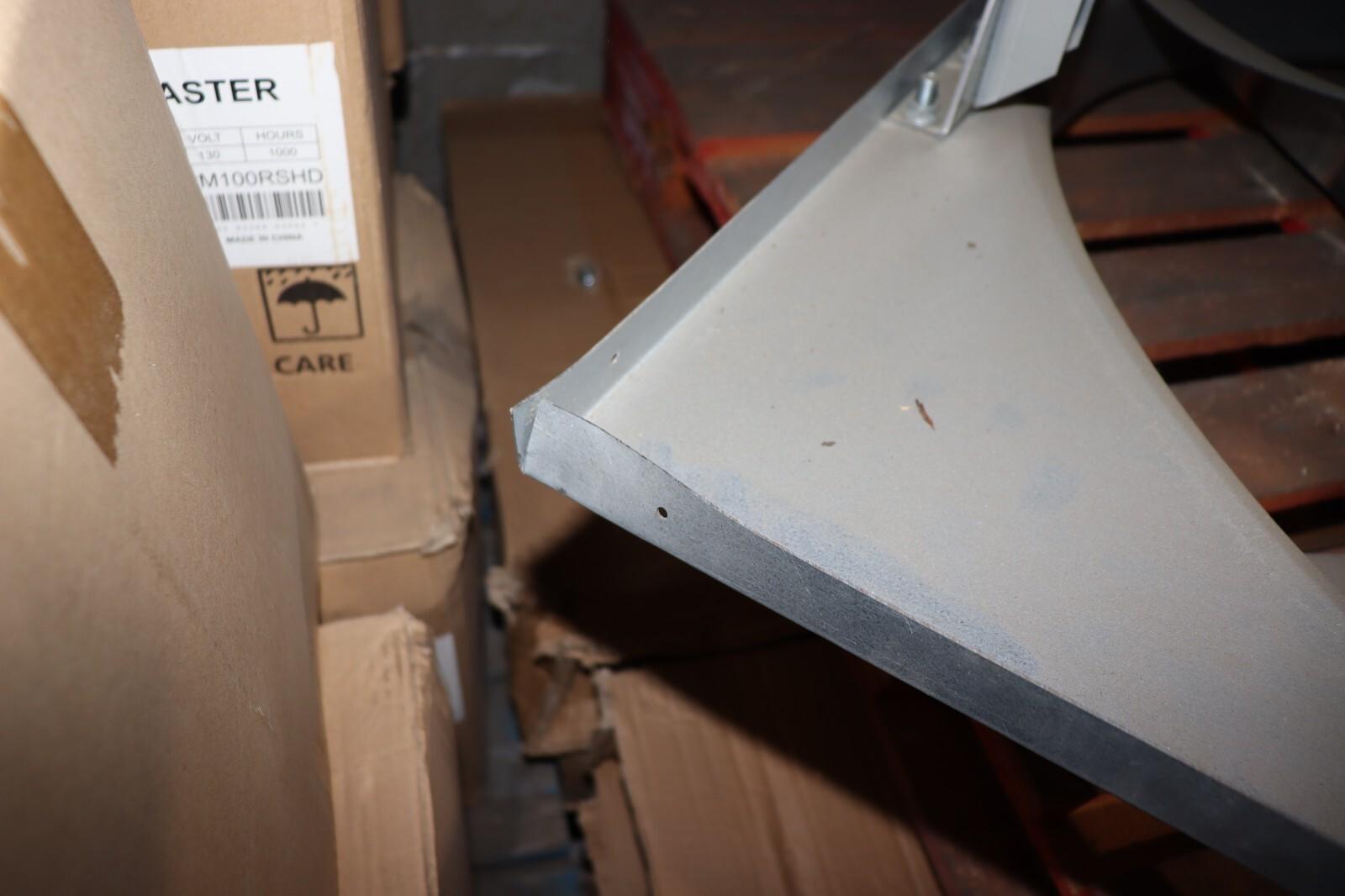

- Construction: Stamped steel frame and blades with a protective zinc-plated finish for durability in warehouses, factories, and agricultural buildings.
- Mounting: Flexible vertical or horizontal installation options for air intake or exhaust applications.
