Description

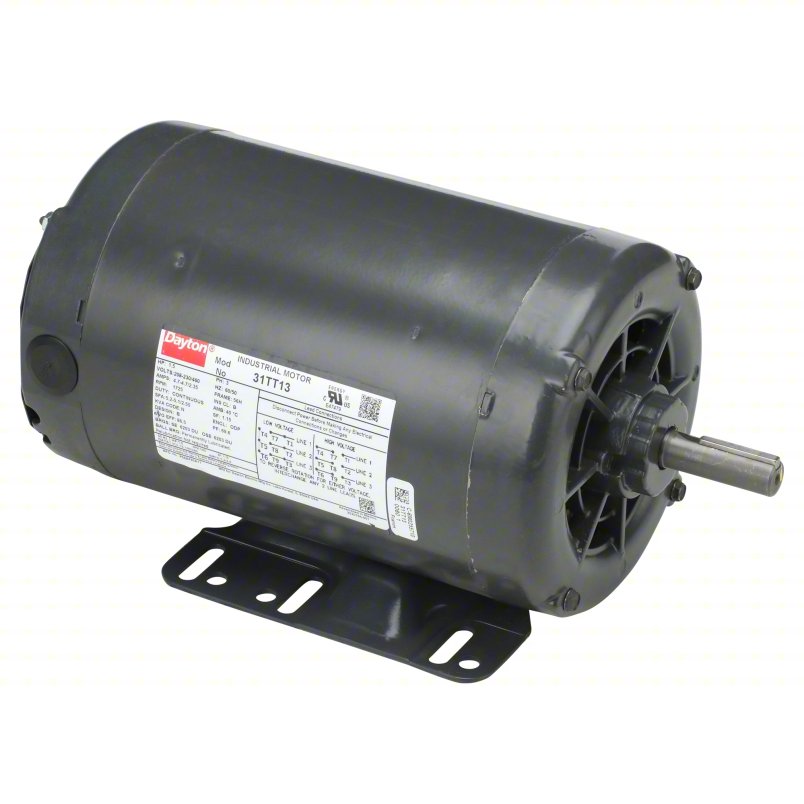

The Dayton 31TT13 is a 1-1/2 HP three-phase general purpose electric motor designed for industrial and commercial use.
Key Specifications:
- Horsepower: 1 1/2 HP
- Phase: 3-Phase (Three-Phase)
- Voltage: 230/460V AC (compatible with 208–230/460V systems)
- RPM: 1,725 RPM (1 speed)
- Frame Size: 56H (Rigid Base Mount)
- Enclosure: Open Drip Proof (ODP)
- Full Load Amps: 4.7/2.4 A
- Nominal Efficiency: 86.5% (Premium Efficiency IE3)
- Service Factor: 1.15
- Shaft Dimensions: 5/8-inch diameter, 1-7/8-inch length (keyed)
- Weight: ~44.7 lbs.
