Description
Open box item, Open box items may have minor dings and bends or scratches,
It is your responsibility to inspect all items on the day of delivery for any damage. Refuse delivery if the item you have inspected has arrived damaged. Please ensure to take photos of damage upon arrival. Again, Please refuse delivery if the item is damaged upon delivery. We are not responsible for items damaged during transit and freight deliveries. Please contact us if there is any issue with your item .

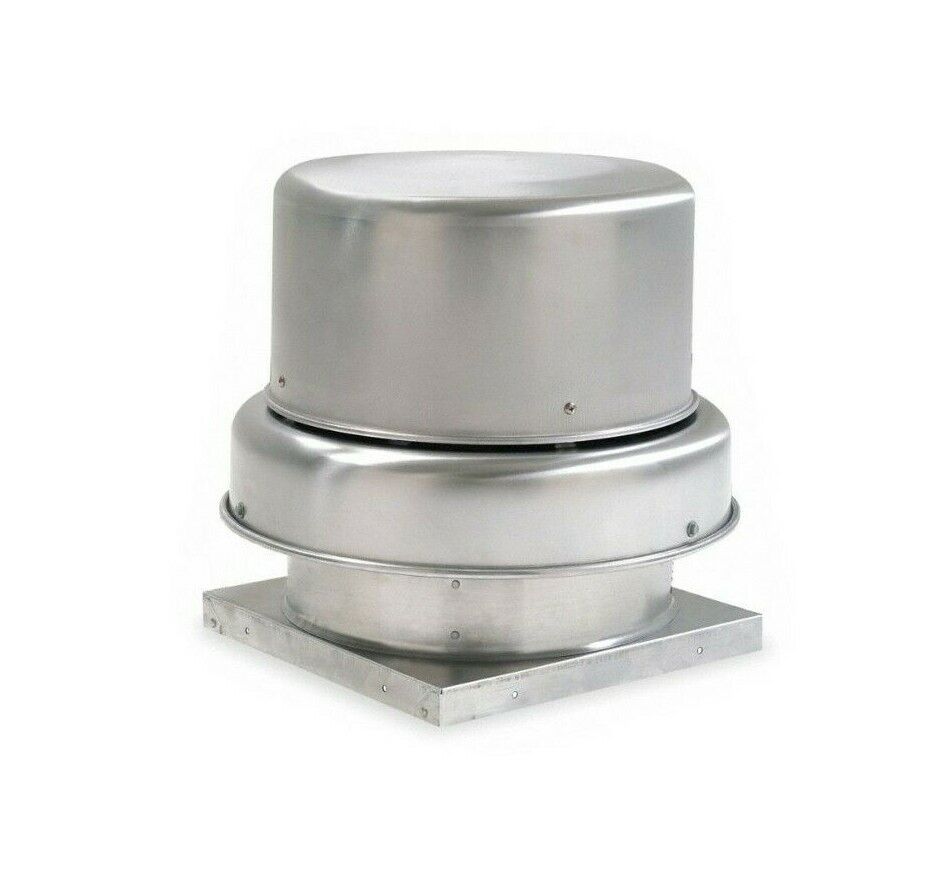

- ItemDownblast Ventilator
- Drive Type - Roof VentilatorsBelt Drive
- Drive Package With Motor IncludedNo
- Duty Rating - Roof VentilatorsHazardous Location
- Mounting Location - Roof VentilatorsRoof
- Base Size - Roof Ventilators22" x 22"
- Wheel Dia.13-1/4"
- Number of Speeds1
- CFM Range1692 to 2093 @ 0" SP
- Motor HP Range1/4 to 1/2
- Item - Roof VentilatorsDownblast Ventilator
- RPM Range1395 to 1725
- Base Height1-3/4"
- Overall Dia.24-3/8"
- Overall Height24-7/8"
- Shaft Dia. Wheel End3/4"
- Shaft Dia. Sheave End3/4"
- Bearing TypeSealed Pillow Block
- Max. Inlet Temp.180 Degrees
- Housing MaterialSpun Aluminum
- Wheel MaterialAluminum
- Wheel TypeBackward Inclined Centrifugal
- Adj. 12 3/8"H Roof Curb Stock No.2ZV82
- Adj. 6 3/8"H Roof Curb Stock No.4C453
- Recommended 12 In. Fixed Curb Item No.2RB76
- Recommended 8 In. Fixed Curb Item No.4HX39
- Recommended Damper Size (In.)15 x 15
- Recommended Damper Stock No.4HX65
- RequiresRoof Curb For New Installations
- StandardsUL/cUL 705AMCA Sound & Air
- IncludesNEMA 1 Junction Box
- Dimension A22"
- Dimension B24-3/8"
- Dimension C24-7/8"
- Dimension D4-3/8"
