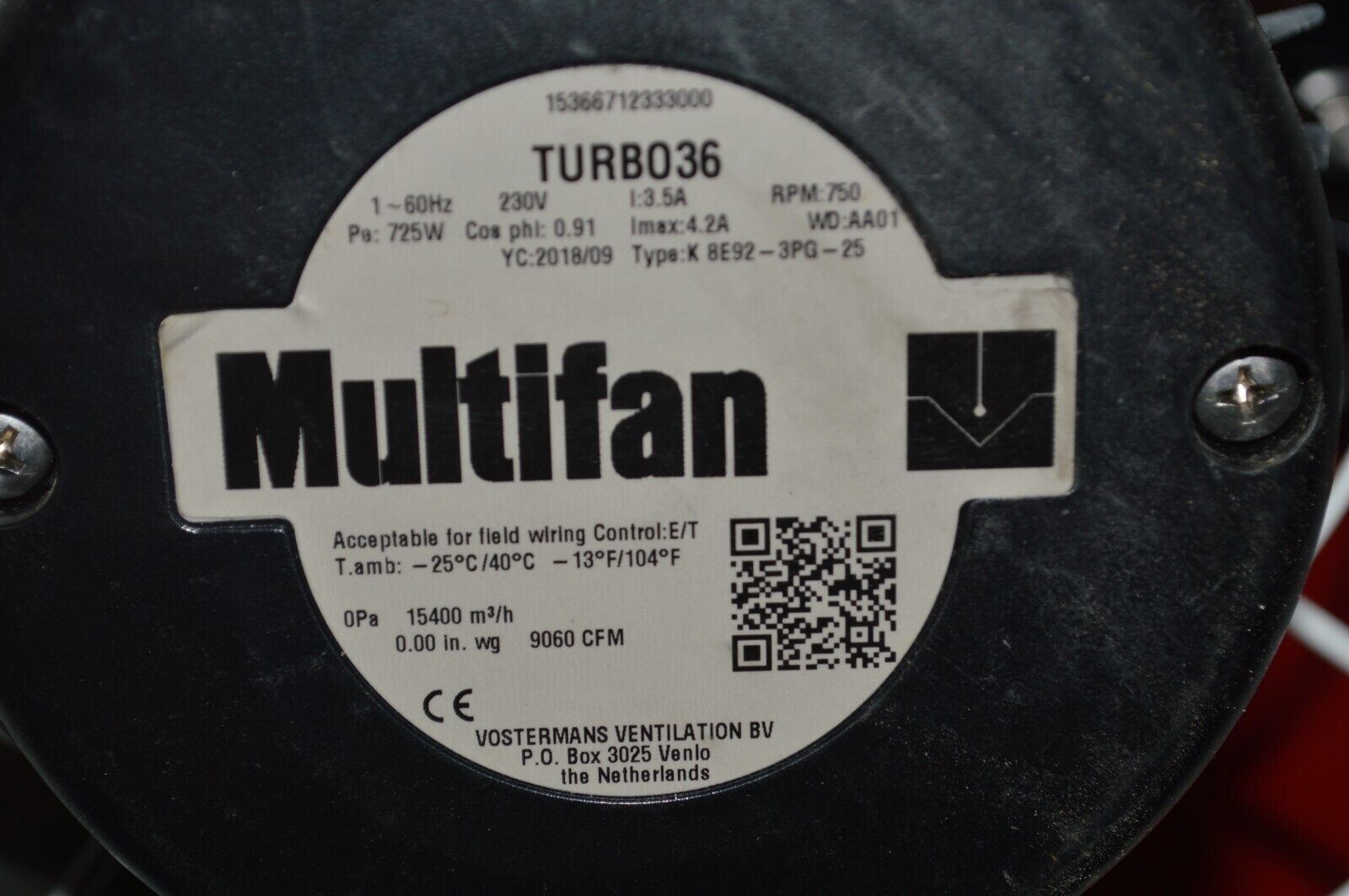

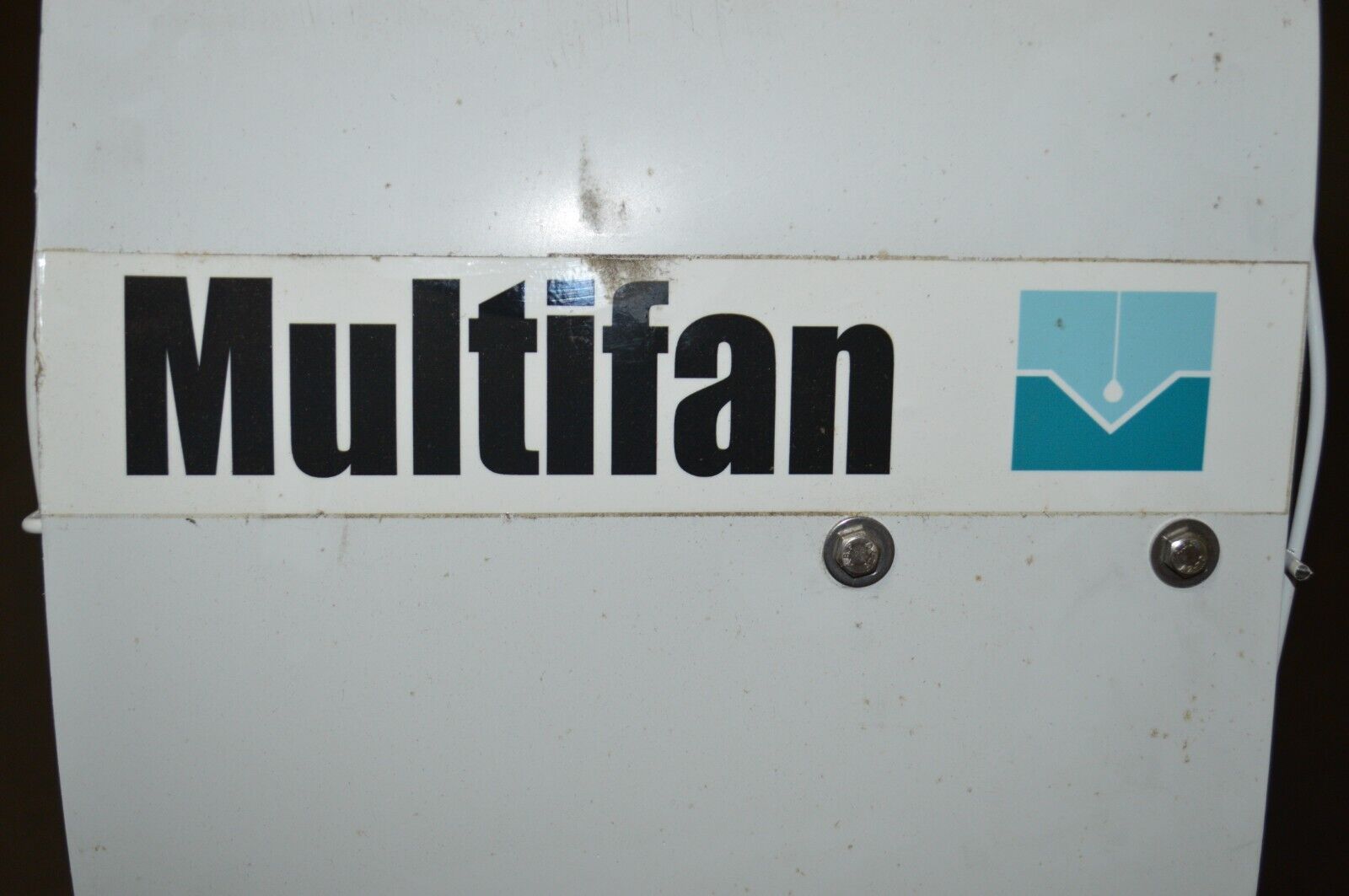

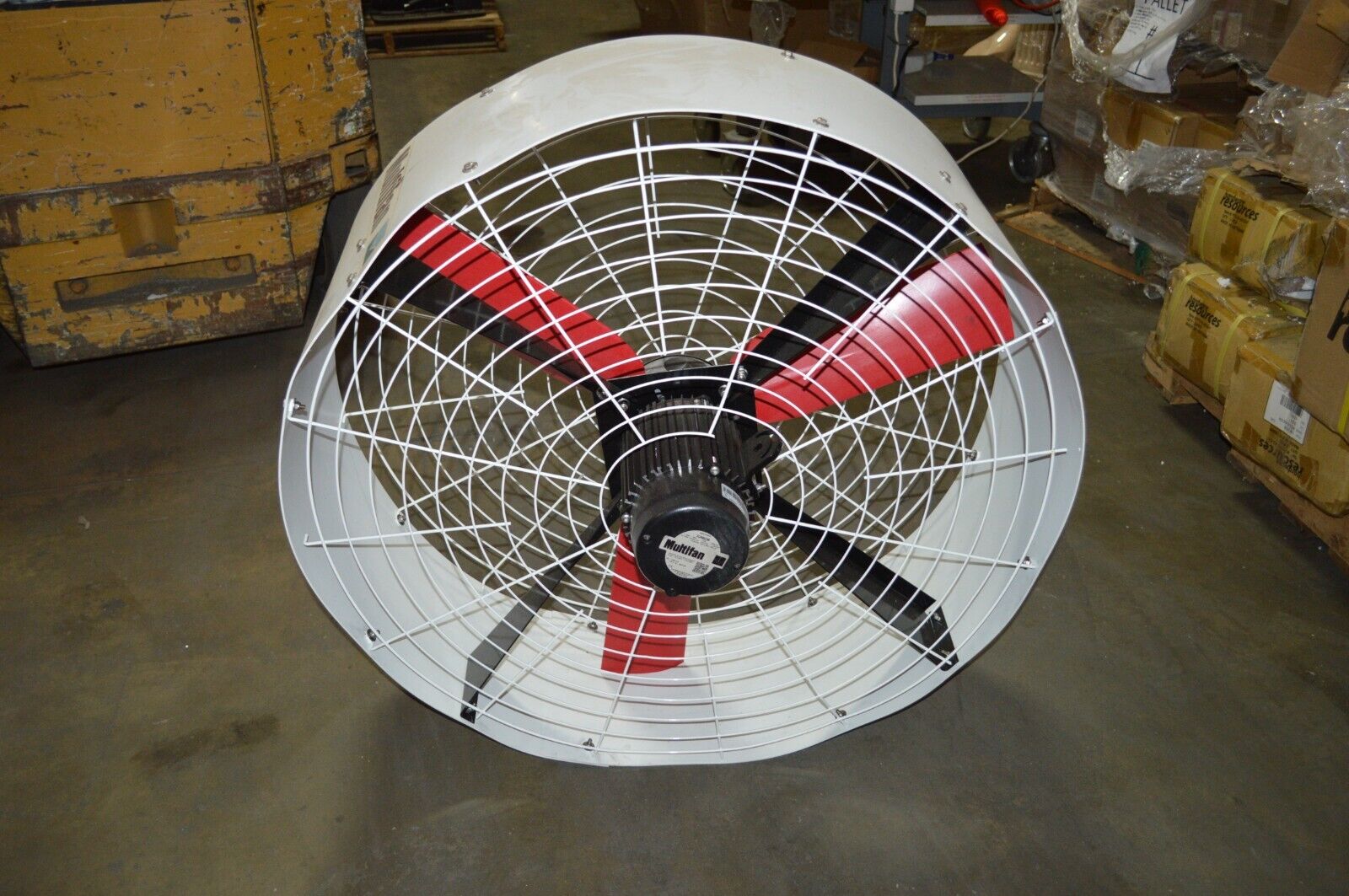

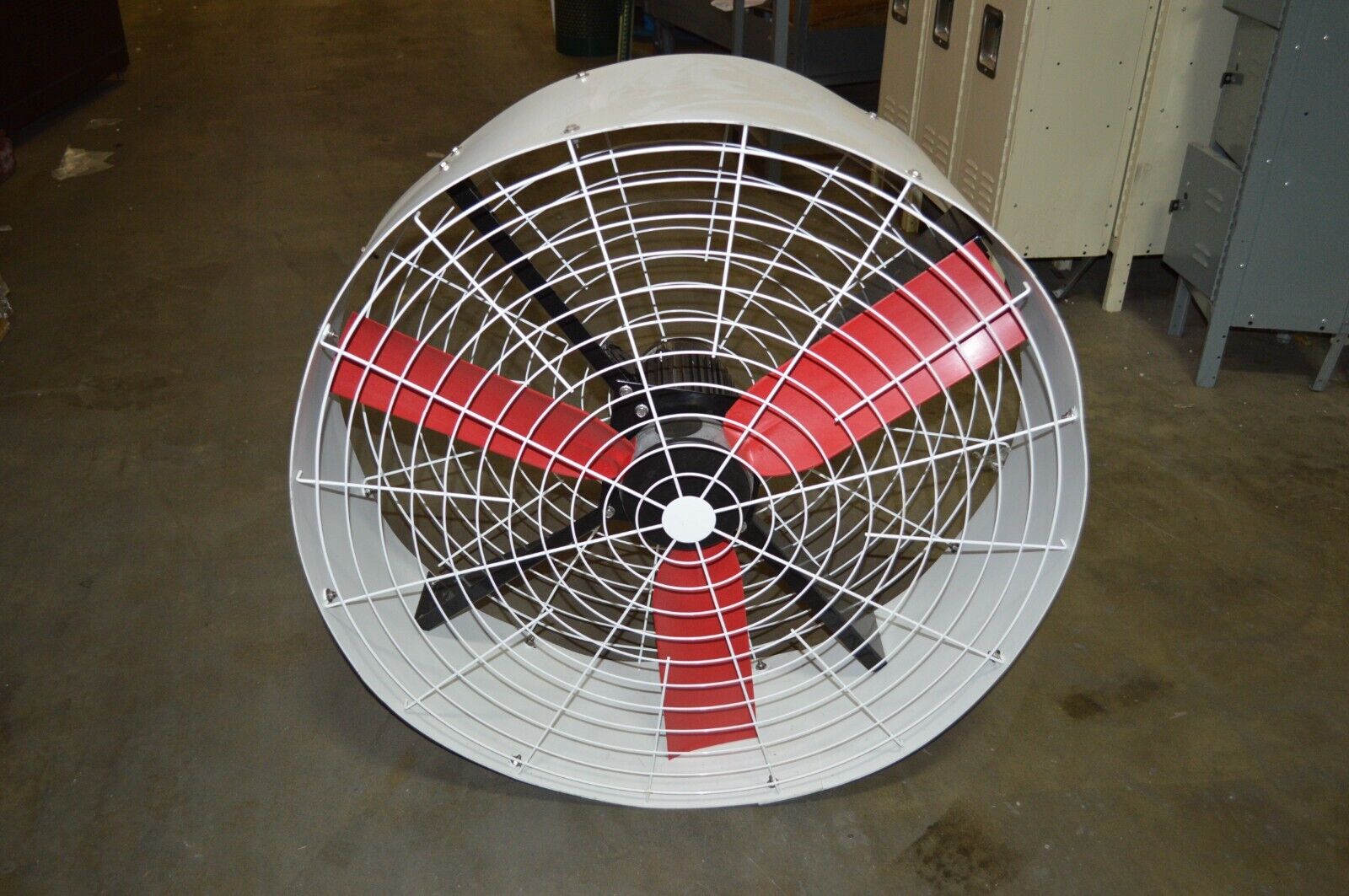

MULTIFAN Corrosion-Resistant Industrial Fan: Corrosion-Resistant Industrial Fan, 36 in Blade Dia

Product Description

Corrosion-resistant industrial fan heads withstand exposure to water and moisture to allow operation in wet or humid areas without damage to the fan. Indoor uses include regulating temperature in greenhouses to optimize plant growth and ventilating livestock buildings to prevent heat stress in animals and reduce the buildup of moisture, manure gases, pathogens, and dust. Outdoor uses include cooling people in pool areas and other high-moisture locations. These fan blade, motor, and guard assemblies can be paired with a new or existing bracket or base.

Product Details

Blade Diameter

36 in

Wheeled Base

Stationary

Oscillation

Non-Oscillating

Watts

768

Number of Speeds

1

Voltage

240 V AC

Phase

1

Air Flow

12,000 cfm

Motor HP

1/2 hp

RPM

770

Amps

3.2

Fan Mounting Location

Fan Head Only

Assembly Required

No

Sound Level

61 dBA

Max. Ambient Temp.

104 °F

Hz

60 Hz

Motor Enclosure

Totally Enclosed Air Over

Motor Insulation

Class F

Motor Type

Permanent Split Capacitor

Thermal Protection

Auto

Bearing Type

Sealed Ball

Height

37-1/2 in

Width

37-1/2 in

Depth

17-1/4 in

Number of Blades

3

Blade Material

Polypropylene

Shaft Dia.

3/4 in

Fan Housing Material

Polypropylene

Guard Material

Steel

Wire Guard Finish

Plastic Coated White

Drive Type

Direct Drive

Standards

UL Recognized Motor

Environmental Applications

Industrial

Product Type

Corrosion-Resistant Industrial Fan

UNSPSC

40101602

Country of Origin

Netherlands (subject to change)
