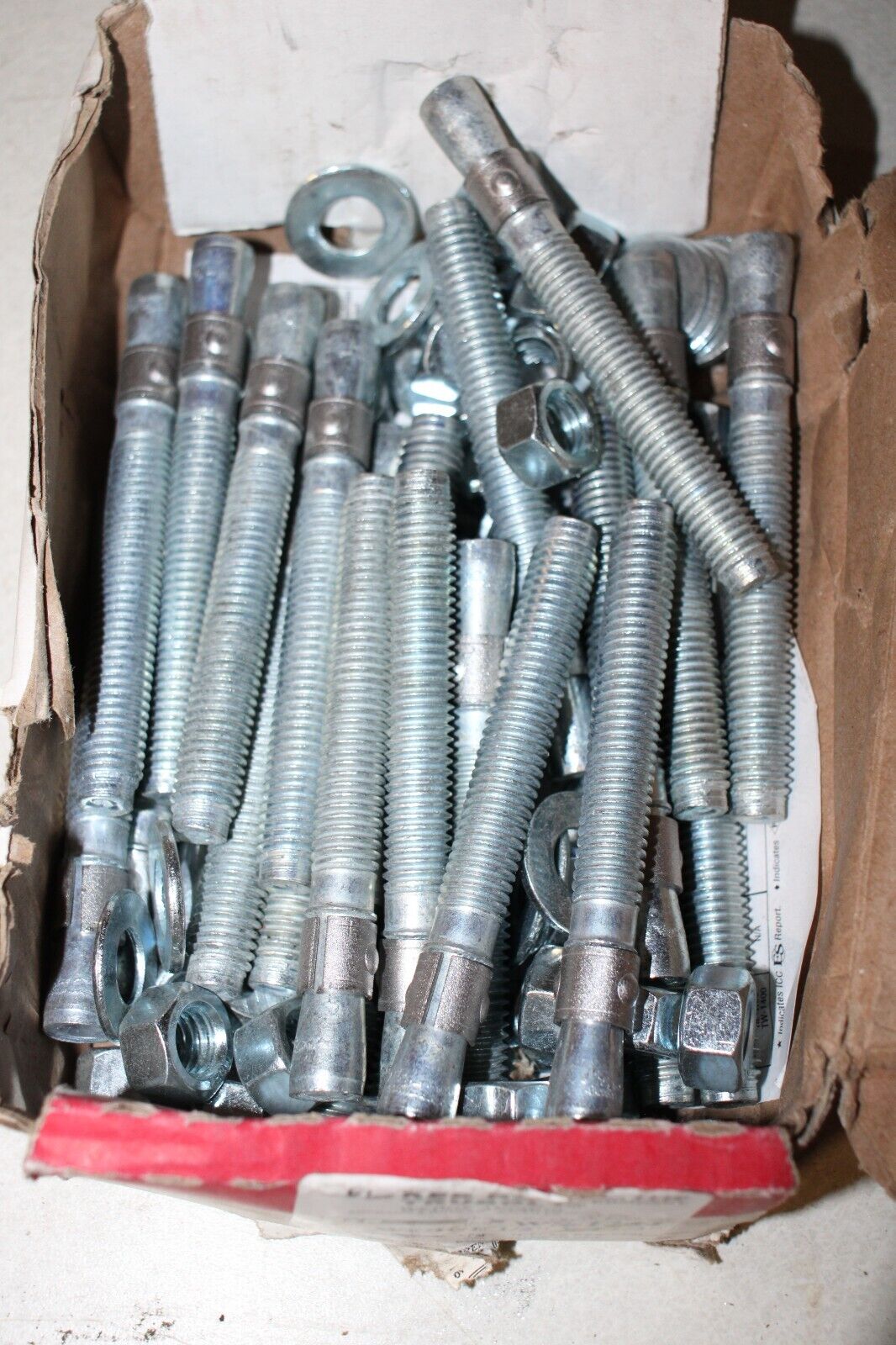

Trubolt Wedge Anchor, 1/2" Dia., 4-1/2" L, Carbon Steel Zinc Plated, 24 PK
Wedge Anchor, System of Measurement Inch, Anchor Diameter 1/2 in, Thread Size 1/2 In.-13, Overall Length 4 1/2 in, Thread Length 3 in, Material Steel, Material Grade/Class Not Graded, Finish Zinc Plated, Compatible Material Concrete, Drill Bit Size 1/2 in, Minimum Installation Depth 1 7/8 in, Minimum Material Thickness 5 in, Ultimate Shear Strength (4,000 psi Concrete) 4,760 lb, Ultimate Tension Strength (4,000 psi Concrete) 5,100 lb, Wedge Anchor Type Wedge Anchor, Seismic Approved No
| Anchor Diameter |
1/2" |
| Overall Length |
4-1/2" |
| Thread Size |
1/2"-13 |
| Minimum Installation Depth |
2-1/4" |
| Thread Length |
3 in |
| Item |
Wedge Anchor |
| Compatible Material |
Concrete |
| Sub-Brand |
Trubolt |
| Material |
Carbon Steel |
| Finish |
Zinc Plated |
| Seismic Approved |
No |
| ICC Approved for Cracked Concrete |
No |
| Maximum Material Thickness |
1-3/4" |
| Thread |
Fully Threaded |
| Material Grade |
Not Graded |
