Description

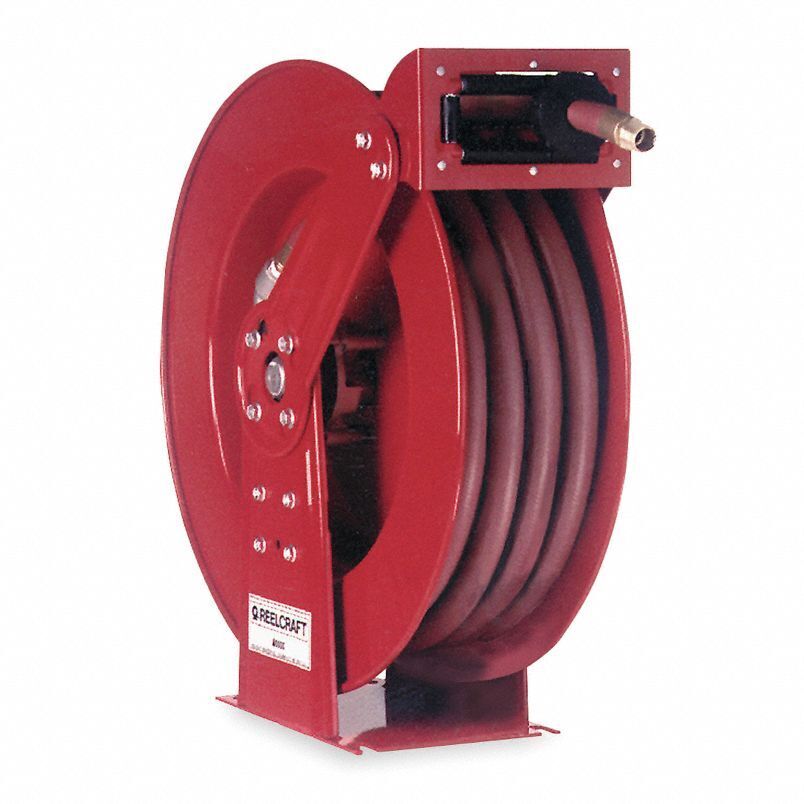

Dual-arm air or water spring-return hose reels are built with all-steel, reinforced dual-pedestal bases and arms for increased stability. These low-pressure (up to 500 psi) reels are powder-coated for corrosion resistance, mount on a wall, ceiling, or in a truck, and include a field adjustable guide arm. Dual-arm hose reels hold air or water hoses and are commonly used in manufacturing facilities, auto or fleet service centers, and with food and chemical processing.
Technical Specs
- ItemSpring Return Hose Reel
- Hose Reel Primary ApplicationAir, Water
- Maximum Operating Pressure300 psi
- Hose Capacity100 ft (3/8 in I.D.)
- Drive TypeSpring Return
- EnclosedNo
- Includes HoseYes
- Hose Inside Dia.3/8 in
- Hose Length100 ft
- Reel MaterialCarbon Steel
- Mounting LocationCeiling, Floor, Truck, Wall
- Speed Limited RetractionNo
- Overall Height25 3/8 in
- Overall Length24 in
- Overall Width10 1/2 in
- Corrosion-ResistantYes
- For Dual HoseNo
- Hose ColorRed
- Hose Cover MaterialPVC
- Hose Fitting A GenderMale
- Hose Fitting A MaterialBrass
- Hose Fitting A Size3/8 in
- Hose Fitting A TypeNPT
- Hose Fitting B GenderMale
- Hose Fitting B MaterialBrass
- Hose Fitting B Size3/8 in
- Hose Fitting B TypeNPT
- Hose Outside Dia.5/8 in
- Hose Reel TypeCeiling, Floor, Vehicle, Wall Mount Hose Reel
- Hose Tube MaterialPVC
- Base Motion TypeStationary
- Pedestal TypeDual Pedestal
- Number of Guide ArmsDouble Arm
- Number of Mount Holes4
- Reel ColorRed
- Twin Hose CompatibleNo
- Swivel MaterialNickel Plated Steel
- Swivel Inlet TypeNPT
- Swivel Outlet GenderMale
- Swivel Outlet Size1/2 in
- Swivel Outlet Thread Size1/2 in - 14
- Swivel Outlet TypeNPT
- Swivel Inlet GenderFemale
- Swivel Inlet Size1/2 in
- Swivel Inlet Thread Size1/2 in - 14
- Reel Width10 1/2 in
- Reel FinishPowder Coated
- Weight82 lb
- Latch TypeSpring Loaded
- Bearing ConstructionBall
- Maximum Operating Temperature150 Degrees F
- Fasteners IncludedNo
- FeaturesLong Life and Trouble-Free Performance
- Spiral Hose GuardNo
- Includes Hose StopYes
- Includes Leader HoseNo
- Minimum Operating Temperature32 Degrees F
- Mount Base Height12 in
- Mount Base Width7 11/32 in
- Mounting Hole Center to Center Width6 in
- Mounting Hole Center to Center Height10 in
- Mount Hole Diameter1/2 in
- Reel Diameter15 1/2 in
- Fitting TypeNPT x NPT
- IncludesHose; Bumper
- Fitting GenderMale x Male
- Fitting Size3/8 in x 3/8 in
- Hose End Configuration3/8 in MNPT
- Overall Dimensions24 in L x 10 1/2 in W x 25 3/8 in H
