ROMAC INDUSTRIES

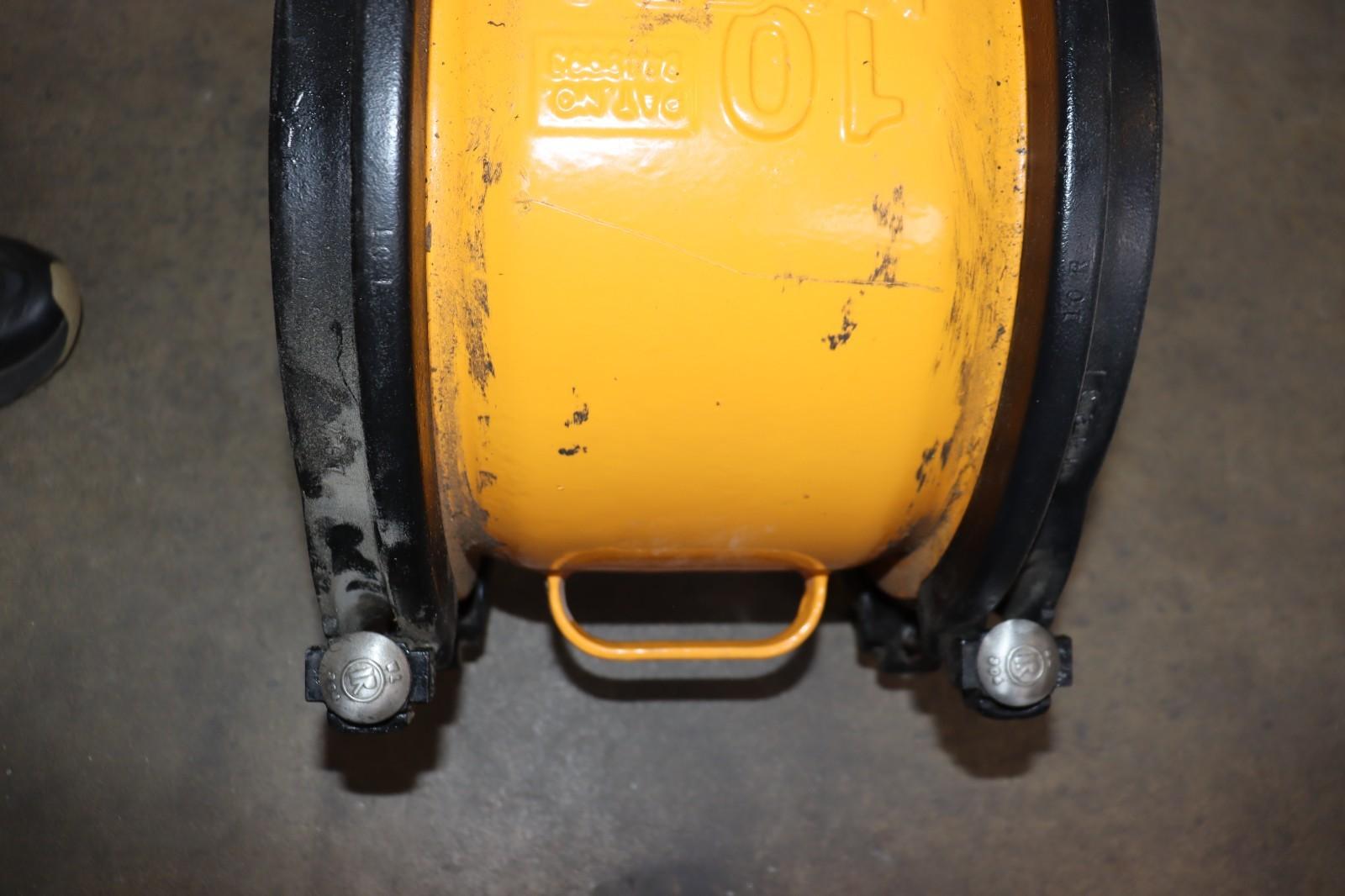

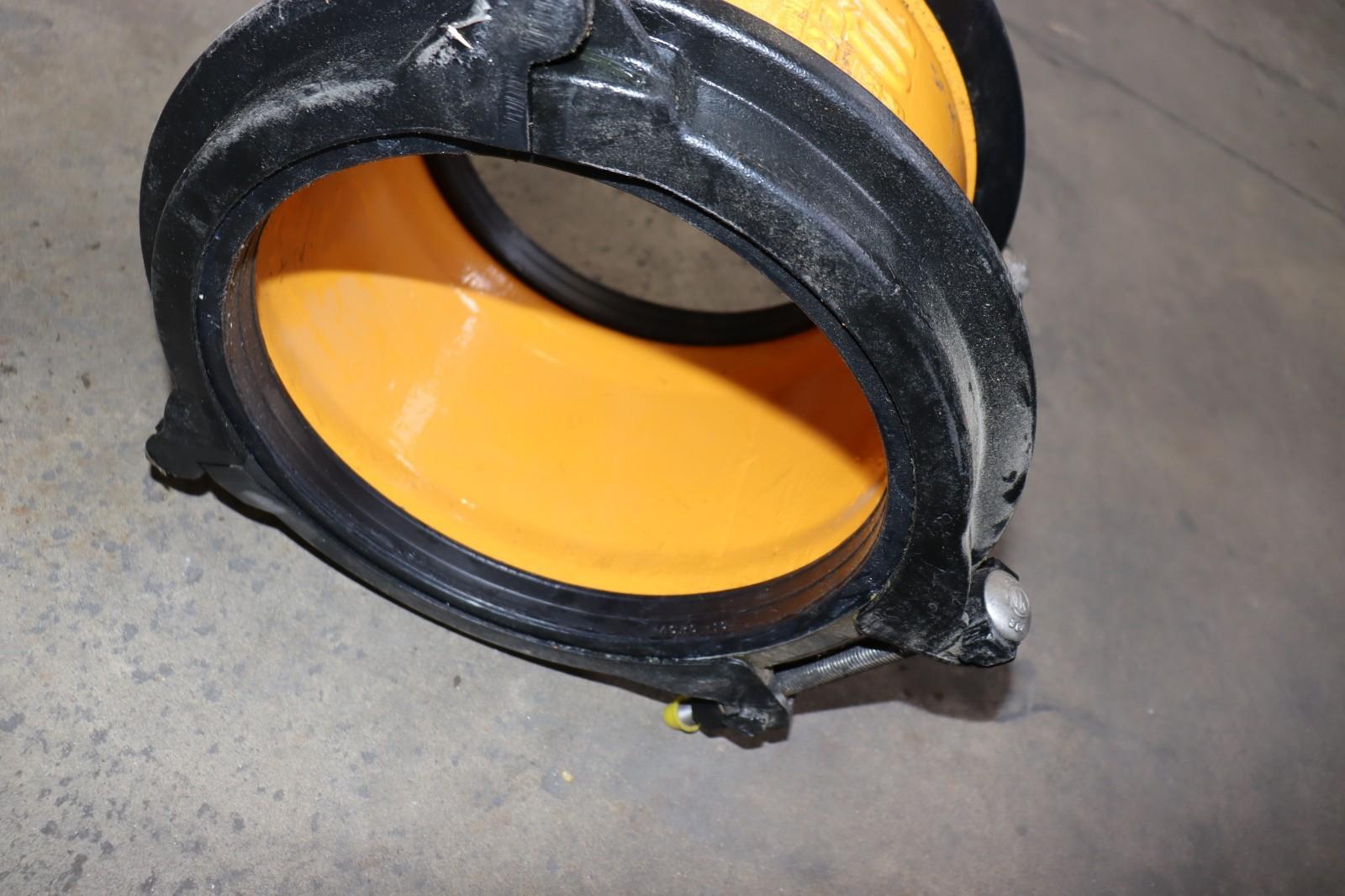

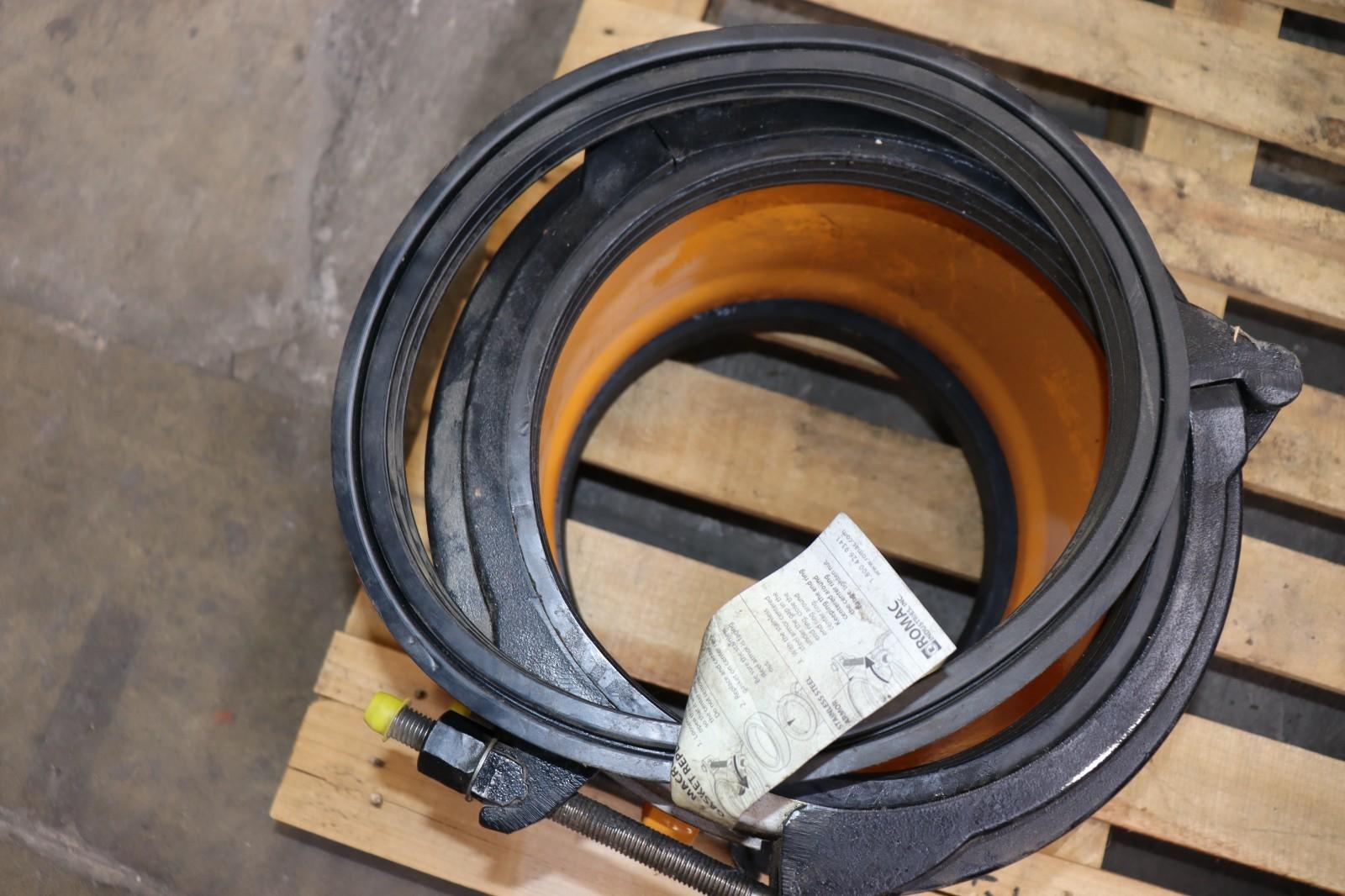

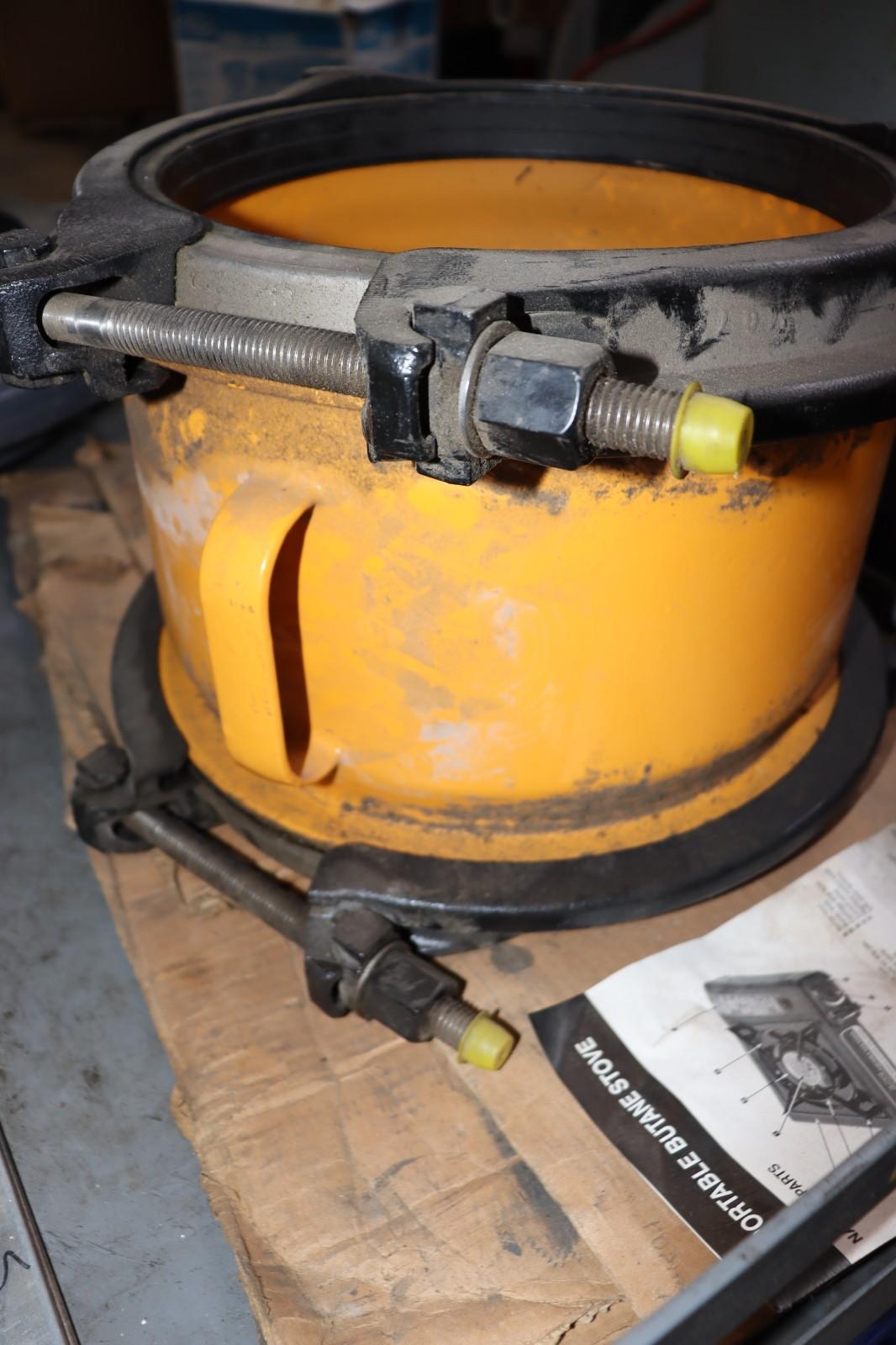

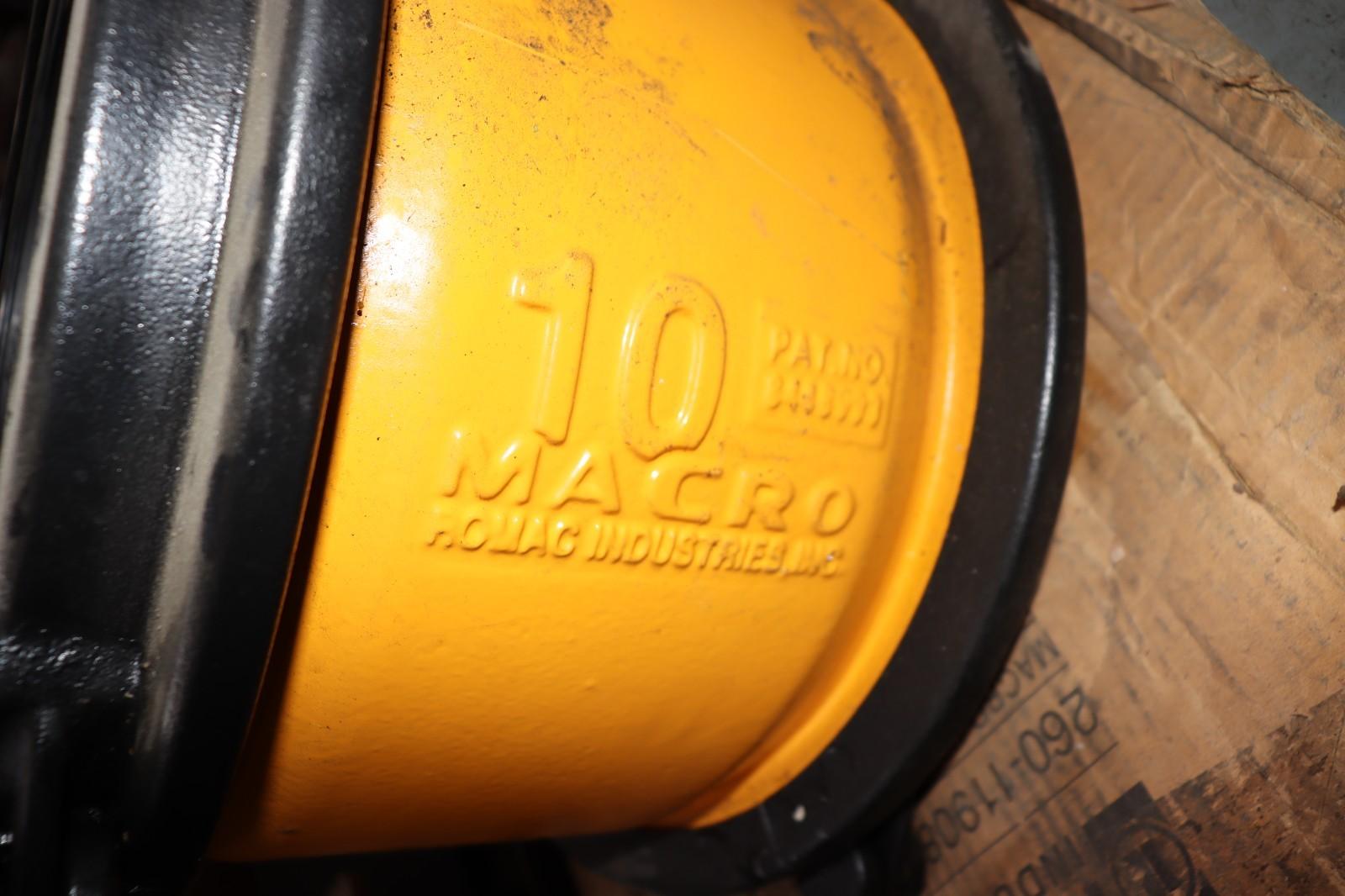

Macro HP™ 10 in. Ductile Iron Coupling
Product Details
- Up to 25% higher working pressure (up to 305 psi)
- Up to 25% more deflection (up to 10°)
- High performance one-piece gasket
- Made in USA
- Easy to remove - in the event that the coupling needs to be removed, Macro HP can be quickly removed simply by loosening two bolts
- Cathodic protection -the Macro HP can be ordered with an adapter/connection for cathodic protection if desired
- Simple installation - Macro HP is a fast stab-fit installation with only two bolts to tighten, the built-in handle makes the macro hp simple to carry and maneuver
- Long-life ductile iron end-rings and center-ring
Specifications
- ANSI:
- ANSI 372, ANSI 61, ANSI A21.11
- ASTM:
- ASTM A-536 Grade 60-40-18, ASTM A-536 Grade 65-45-12, ASTM D-2000
- AWWA:
- AWWA C-219
- Application:
- Asbestos Cement Pipe, Cast Iron, Plastic Pipe, Steel Pipe
- Clean Bagged:
- No
- Coating:
- Romacote Fusion Bonded Epoxy
- End Connection 1:
- Flanged
- End Connection 2:
- Flanged
- End Connections:
- Flanged
- FM Approved:
- No
- Fitting Size 1:
- 10
- Fitting Size 2:
- 10
- Fitting Sizes:
- 10 in
- Fitting Type:
- Coupling, Straight
- Height:
- 16-12/25
- Length:
- 11-19/100
- Material:
- Ductile Iron, Rubber, Stainless Steel
- Material Type:
- 304, EPDM
- NSF:
- NSF 372, NSF 61
- NSF Certified:
- Yes
- Origin:
- Domestic
- Pressure - High:
- 260
- Range (in):
- 10.70 in - 11.90 in
- Style Name:
- Macro HP™
- UL Listed:
- No
- Weight:
- 57
- Width:
- 15-13/50
