Description
***PLEASE CONTACT US FOR AN ACCURATE SHIPPING QUOTE***

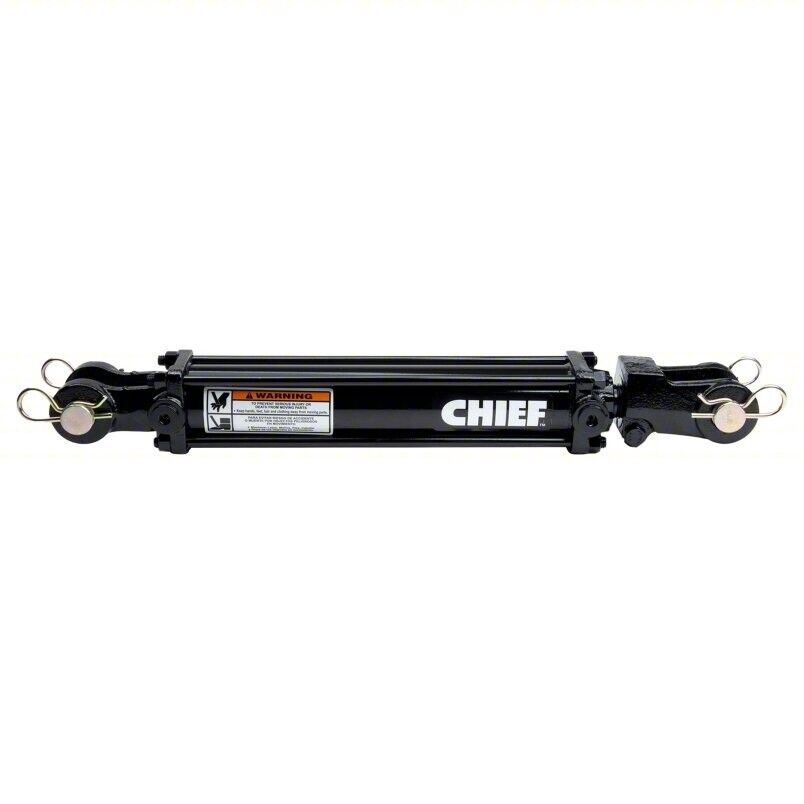

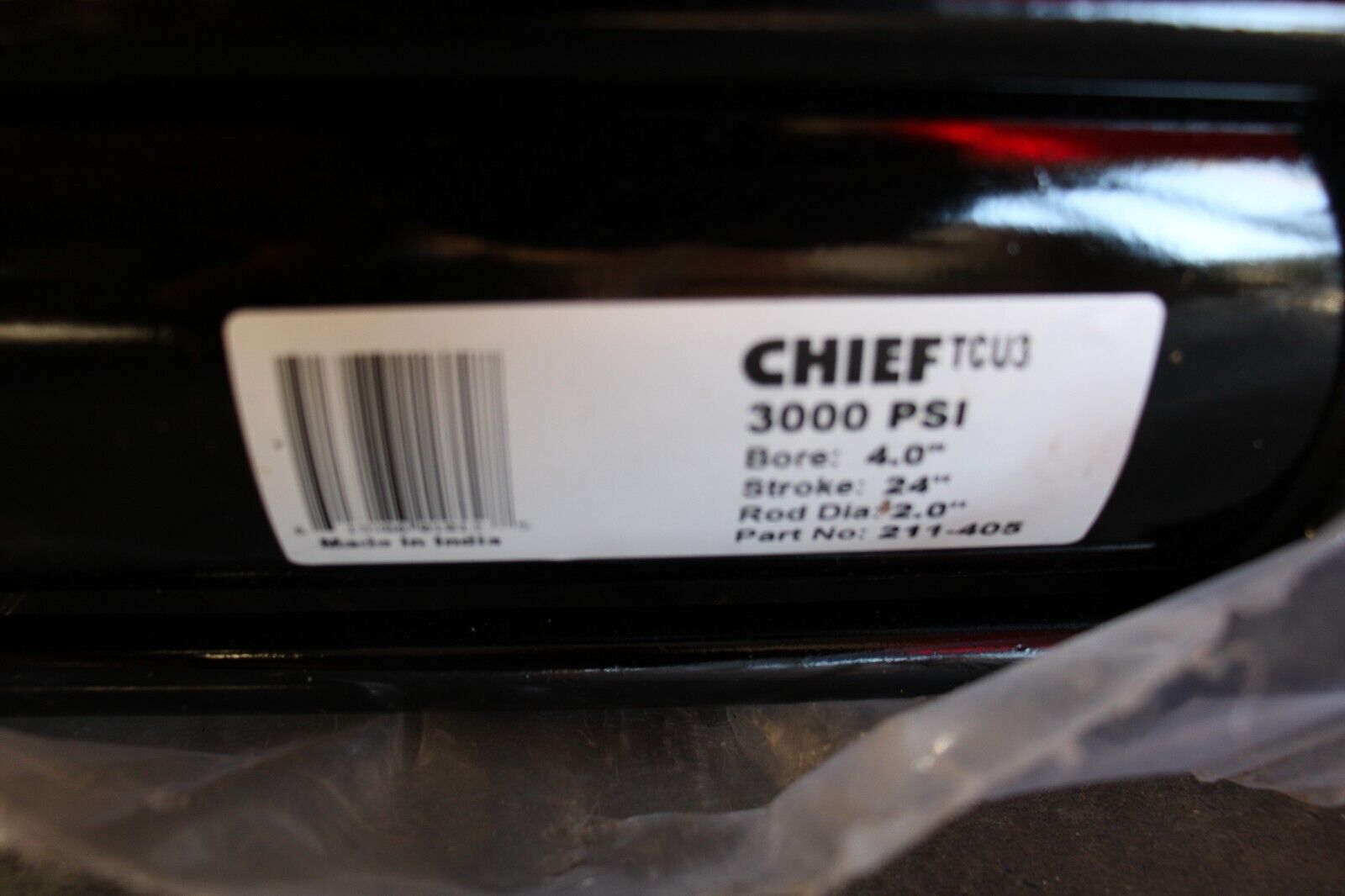

CHIEF Hydraulic Cylinder: 24 in Stroke Lg, 34 1/4 in Retracted Lg, 37,690 lb, 2 in Rod Dia.
Product Details
- Brand
- CHIEF
- Cylinder Style
- Tie-Rod
- Duty Rating
- Heavy Duty
- Bore Dia.
- 4 in
- Stroke Length
- 24 in
- Max. Pressure
- 3,000 psi
- Retracted Length
- 34-1/4 in
- Rod Dia.
- 2 in
- Port Size
- #8 SAE
- Single Acting/Double Acting
- Double Acting
- Column Load
- 37,690 lb
- Extended Length
- 58-1/4 in
- Temp. Range
- -20° to 180°F
- Piston Material
- Ductile Iron
- Piston Rod Material
- Chrome Plated
- Ring Material
- Polyurethane
- Tube Material
- Heavy-wall Honed Steel
- Wear Band Material
- Durable; Non-Metallic
- Body Material
- Steel
- Tie Rods
- High Tensile
- Rod Seal Type
- Urethane U-Cup
- Piston Seal Type
- Pre-loaded
- Finish
- Unfinished
- Standards
- SAE J214
- Includes
- Pins and Clips
- Pin Dia.
- 1 in
- UNSPSC
- 27121602
- Country of Origin
- Switzerland (subject to change)
