Description

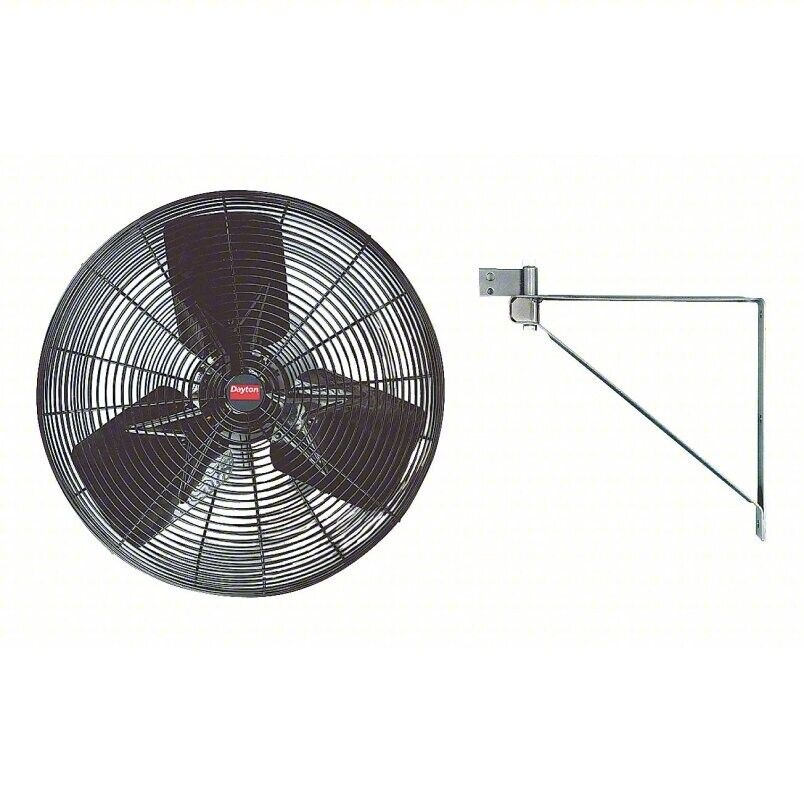

DAYTON Light-Duty Industrial Fan: Light-Duty Industrial Fan, 24 in Blade Dia, 3,800/5,450 cfm
Light-duty industrial wall-mount fans cool light manufacturing areas, warehouses, and other dry, clean spaces where floor space is limited. These air circulators are used where an office fan is inadequate, and a heavier-duty or wet-location industrial fan isn't needed. Compared to standard-duty industrial fans, these light-duty fans are made of lighter-gauge materials and have a lower-horsepower motor with less-robust bearings.
2MA10
2MA10B
Product Details
- Brand
- DAYTON
- Blade Diameter
- 24 in
- Wheeled Base
- Stationary
- Oscillation
- Non-Oscillating
- Watts
- 320/240
- Number of Speeds
- 2
- Voltage
- 120V AC
- Phase
- 1
- Air Flow
- 3,800/5,450 cfm
- Motor HP
- 1/4 hp
- RPM
- 1100/950
- Amps
- 2.9/2.0
- Fan Mounting Location
- Ceiling; Wall
- Air Velocity @ 10 Ft.
- 1000/700 fpm
- Air Velocity @ 20 Ft.
- 590/300 fpm
- Air Velocity @ 40 Ft.
- 360/180 fpm
- Air Velocity @ 60 Ft.
- 150/115 fpm
- Assembly Required
- Yes
- Sound Level
- 74 dBA
- Max. Ambient Temp.
- 104 °F
- Hz
- 60 Hz
- Motor Enclosure
- Open Air-Over
- Motor Insulation
- Class B
- Motor Type
- Permanent Split Capacitor
- Thermal Protection
- Automatic Reset
- Bearing Type
- Ball
- Fan Cord Length
- 9 ft
- NEMA Plug Configuration
- 5-15P
- Height
- 31 in
- Width
- 27 in
- Depth
- 23 in
- Number of Blades
- 3
- Blade Material
- Aluminum
- Shaft Dia.
- 17 mm
- Fan Housing Material
- Steel
- Color
- Black
- Guard Material
- Steel
- Wire Guard Finish
- Polyester Powder Coated Black
- Number of Conductors
- 3
- Height Adjustment
- Fixed Height
- Drive Type
- Direct Drive
- Standards
- cULus Listed
- Includes
- Mounting Hardware; Secondary Safety Support Cable; Wall/Ceiling Bracket
- Environmental Applications
- Industrial
- Product Type
- Light-Duty Industrial Fan
- Country of Origin
- Varies (subject to change)
