Description

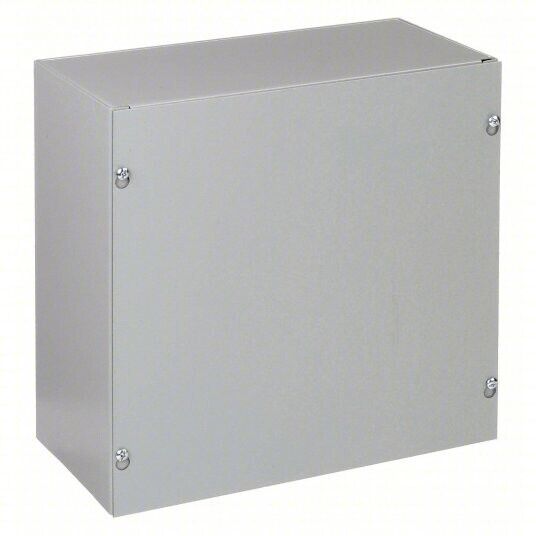

The Hoffman ASE24X24X6NK is a type 1, heavy-duty, steel screw-cover electrical enclosure designed for use as a commercial or industrial junction or pull box. The "NK" in the part number indicates that it comes without knockouts, providing a solid, un-drilled steel box that allows installers to punch holes exactly where needed.
Technical Specifications:
- Dimensions: 24.00" Height x 24.00" Width x 6.00" Depth
- Material: Mild carbon steel (14-gauge body, 16-gauge cover)
- Finish: ANSI 61 gray polyester powder coating inside and out over plated surfaces
- Protection Ratings: NEMA/EEMAC Type 1 and IP30 (designed for indoor use to protect against dust and contact with live components)
- Cover Type: Flat, removable solid cover with unique keyhole slots for easy screw fastening
- Certifications: UL 50/50E Listed, cUL Listed per CSA C22.2, and IEC 60529 compliant
Key Features & Design:
- Keyhole Screw Slots: The cover features unique slots so you don't have to completely remove the plated steel screws to slide the cover off, making wiring and inspections much faster.
- No Knockouts (NK): Provides full flexibility for custom conduit entries while maintaining a clean, secure seal against tampering and environmental debris.
-
Easy Mounting: Includes pre-drilled mounting holes on the back of the box for stable wall mounting, along with an integrated provision for grounding.

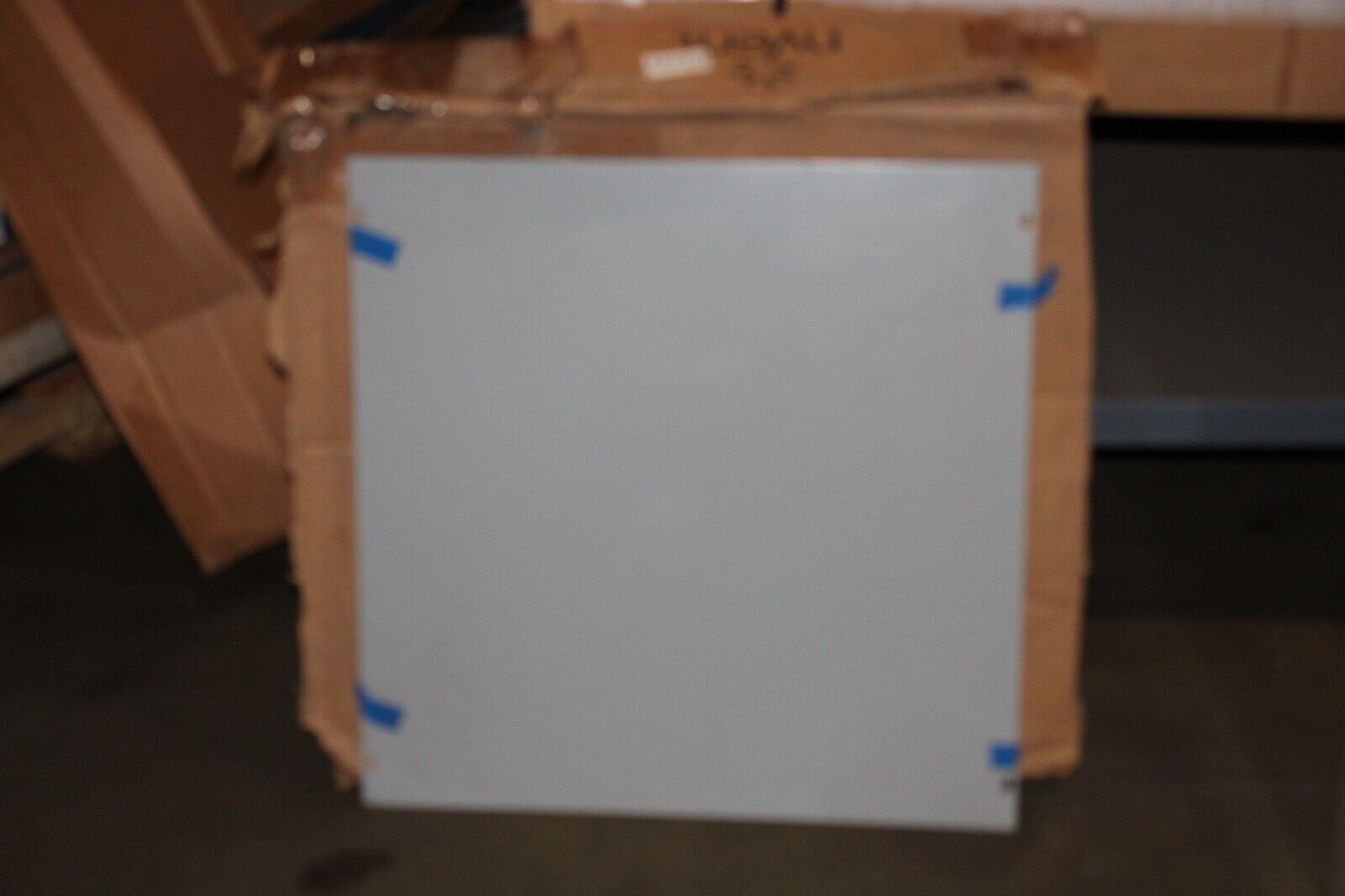

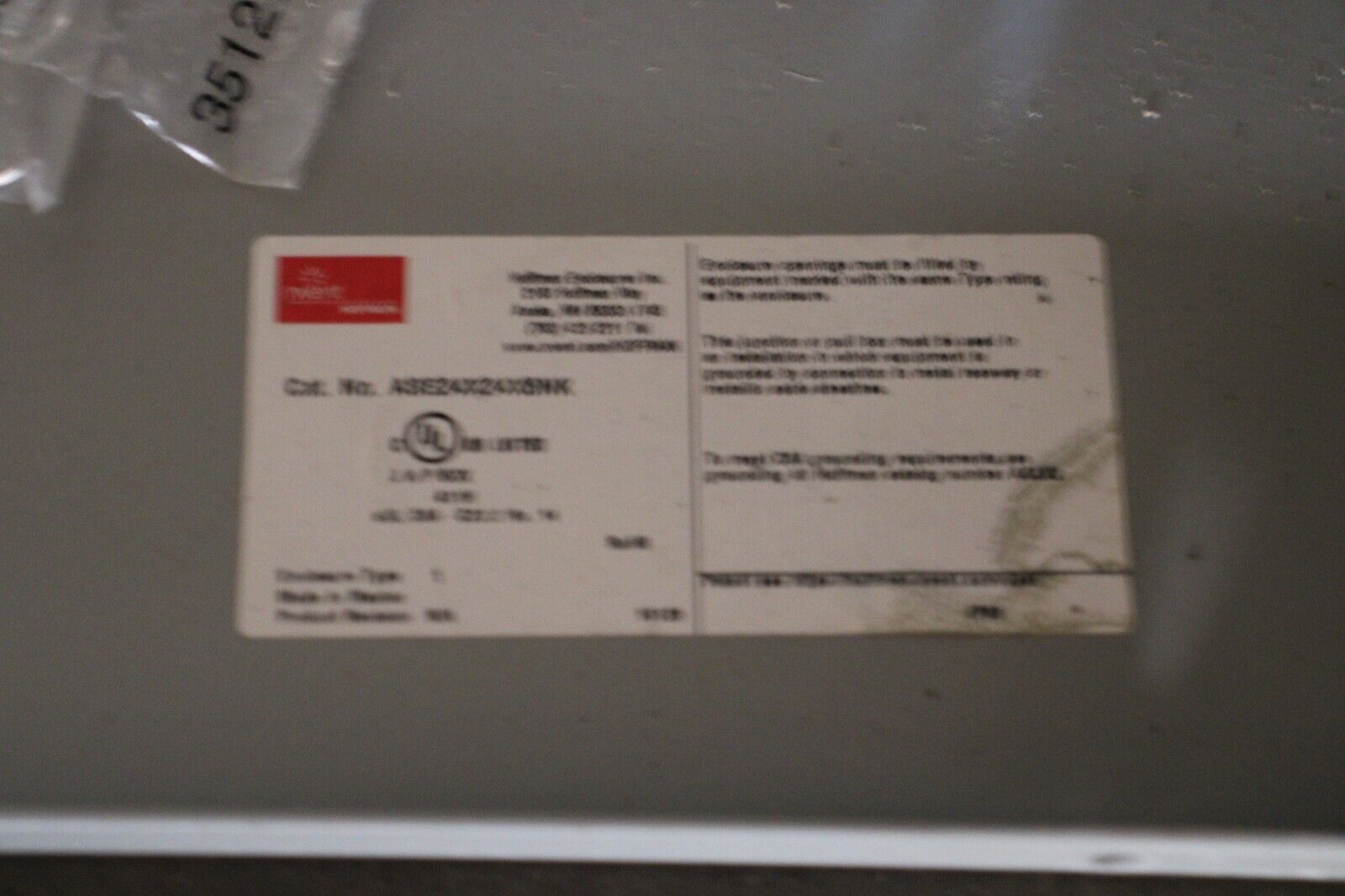

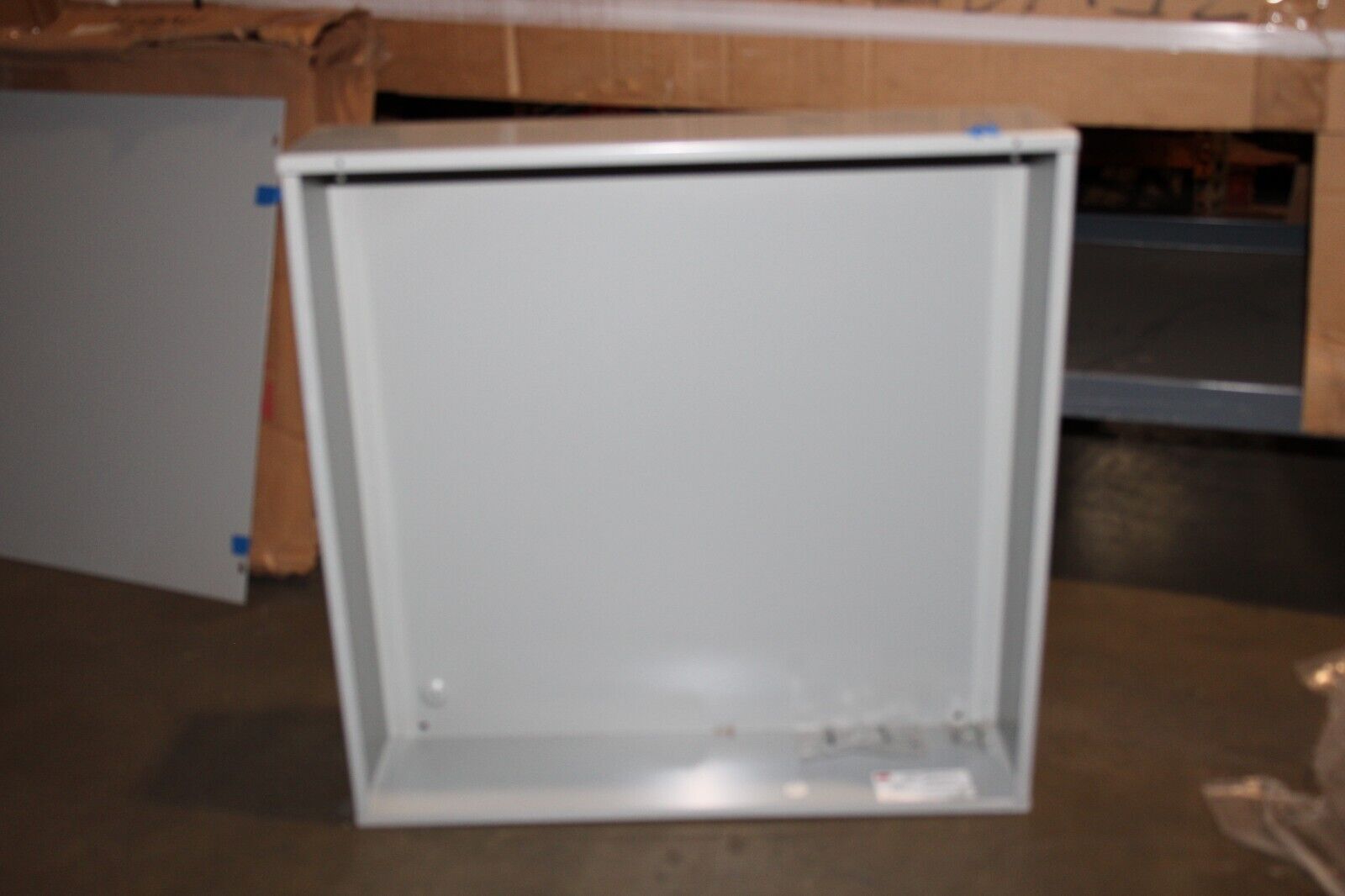

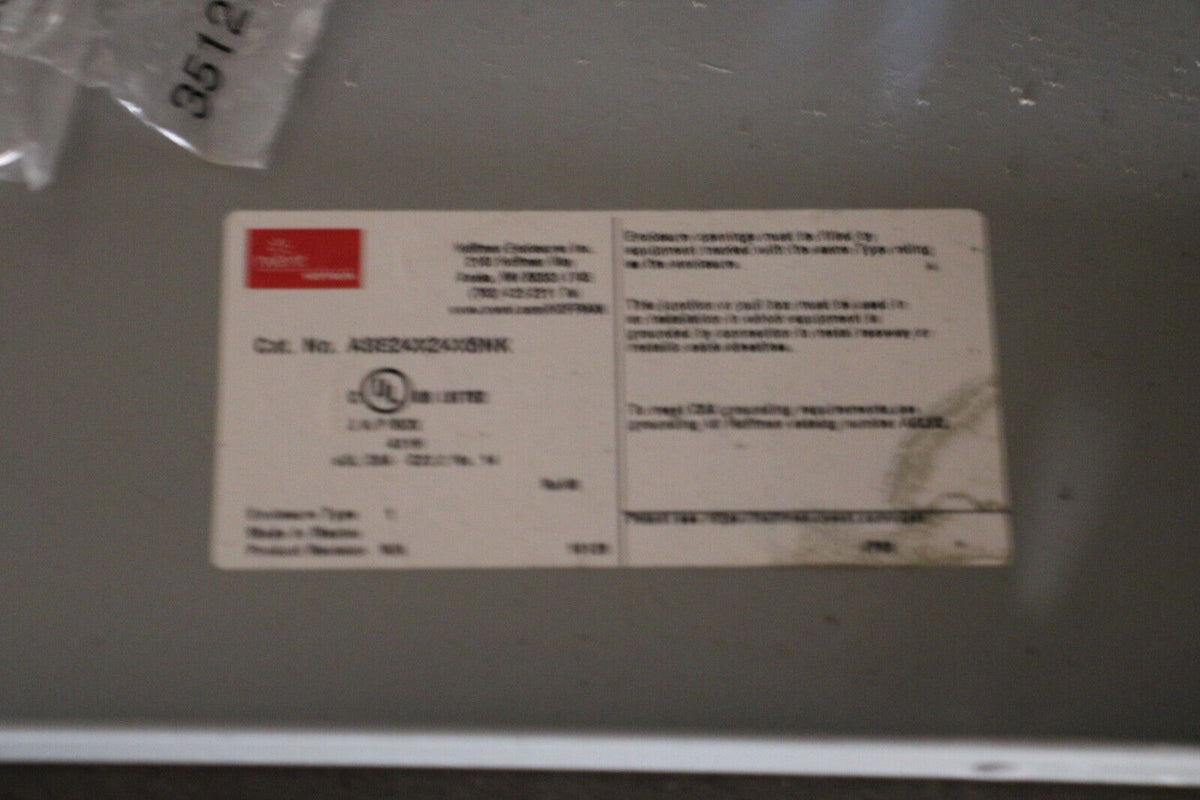

New, open box. Box may show shelf wear or damage. Please review all pictures and ask any questions prior to purchase.
