Description

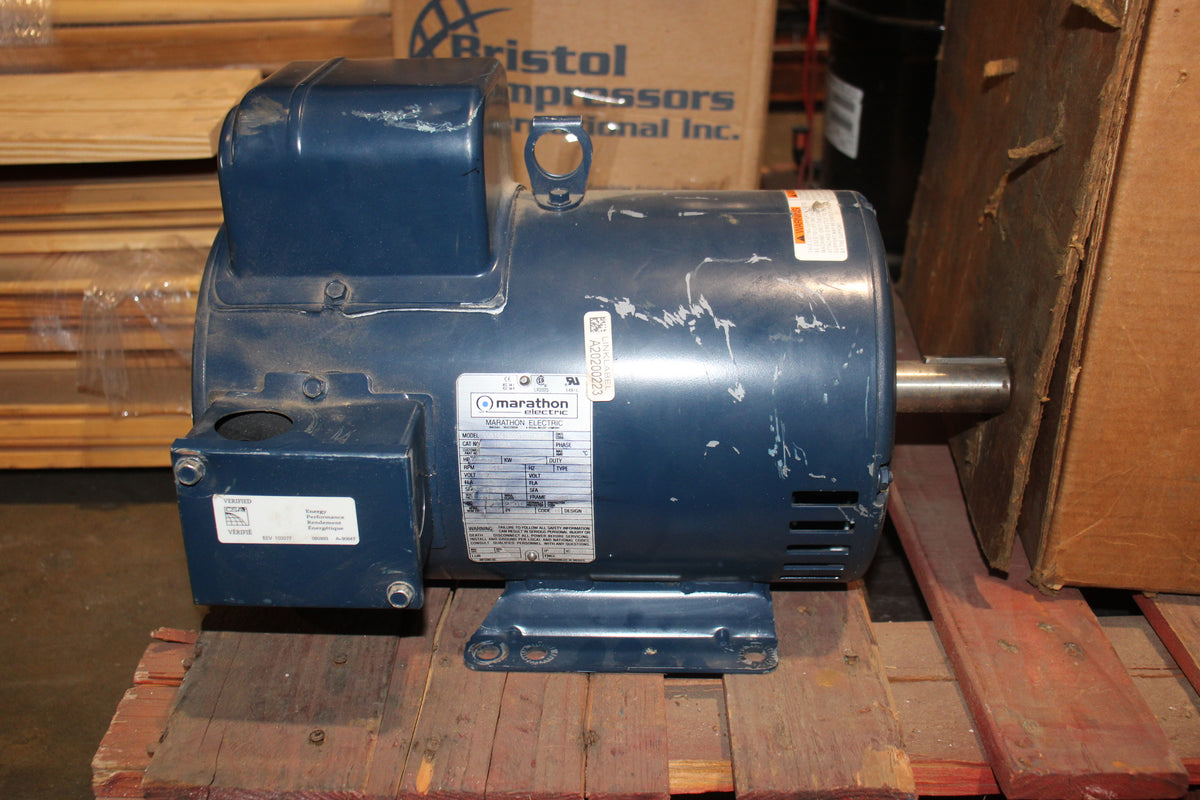

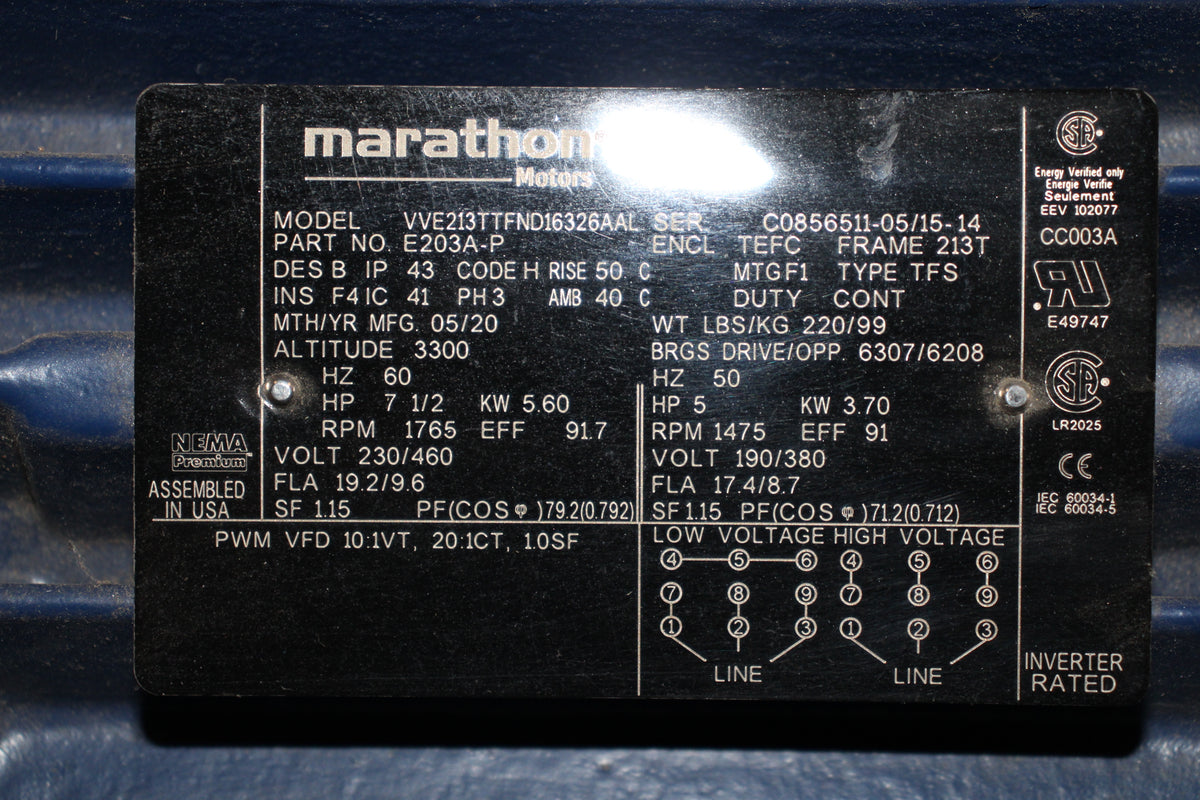

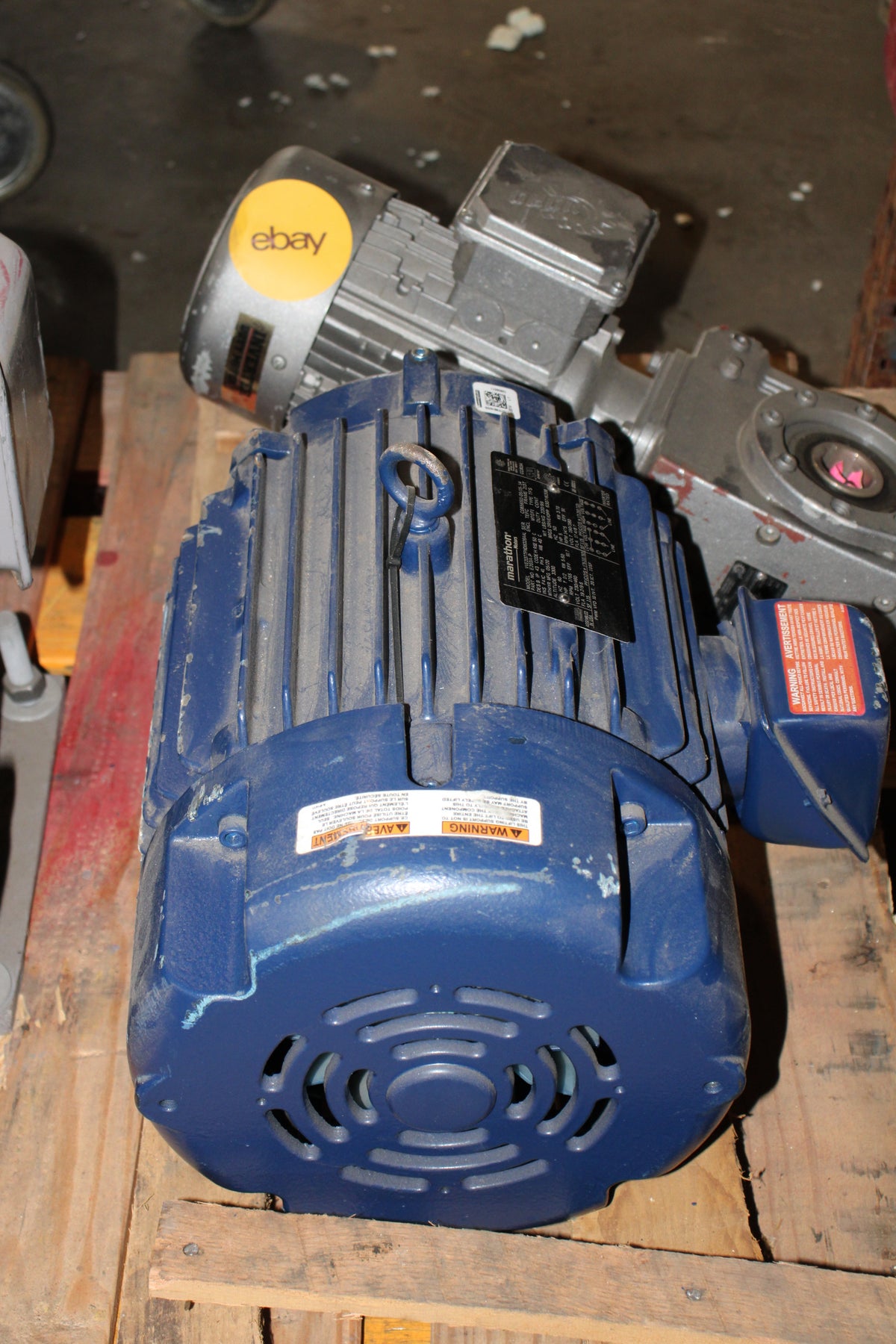

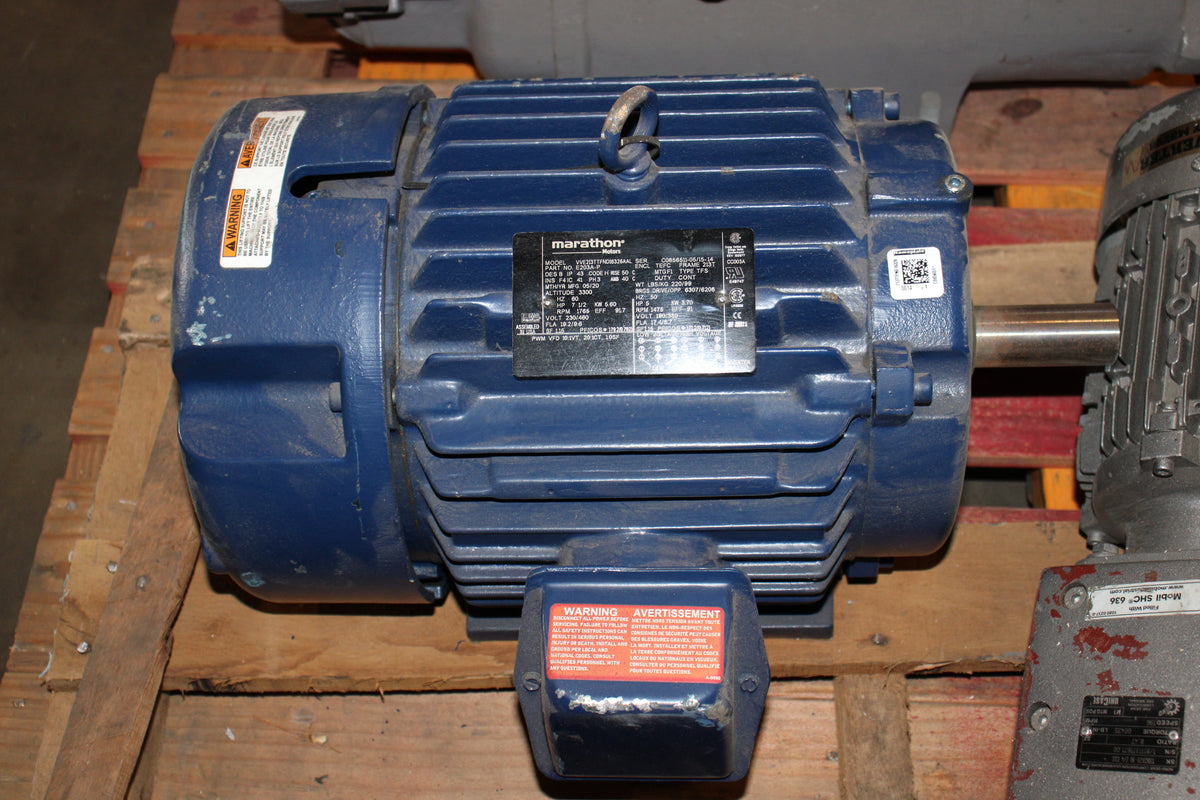

The Marathon E203P-A / VVE213TTFND163AAL is a highly specific, commercial-grade electric motor manufactured by Marathon Electric.
- Catalog #: E203A-P
- Separately available C-Face Kit:: A646
- "C" Dimension: 19.63
- Construction: CAST IRON
- Inverter Duty: CT speed range: 10:1 VT / 10:1 CT
- BCP (Bearing Current Protection)
- Rated 60/50 Hz; 190/380 or 380 volt at next lower horsepowre
- Output: 7.5 HP
- RPM: 1800
- Voltage: 230/460V @ 60Hz
- Enclosure: TEFC (Totally Enclosed Fan Cooled)
- Frame: 213T
- Mounting: Rigid Base
- Service Factor: 1.15
- Efficiency: 91.7 (IS PREMIUM)

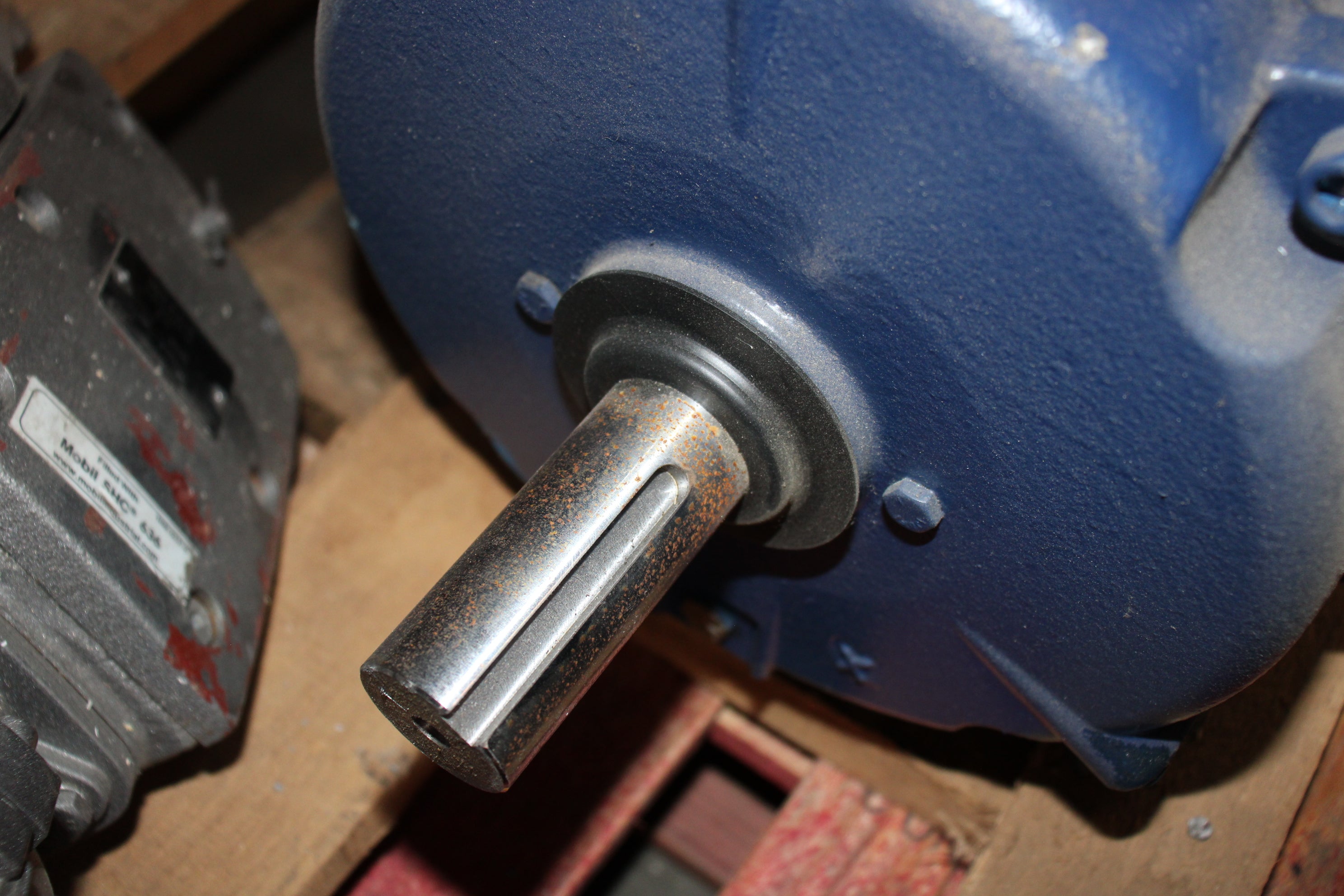

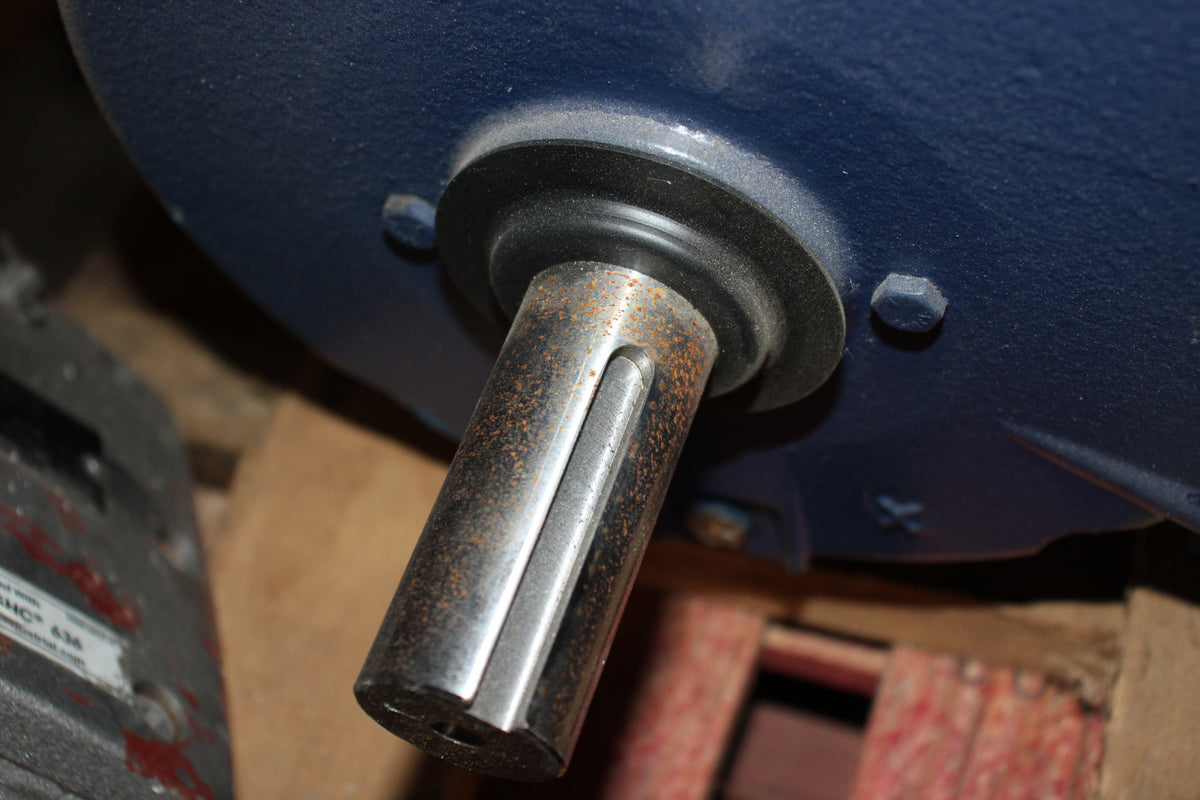

- Shaft dimensions (dia x len): 1-3/8" x 3-3/8"
Common Uses:
Motors built with these exact frame dimensions and power levels are heavy-duty workhorses. You will usually find them running:
- Industrial pumps and water systems
- Large commercial fans and air blowers
- Factory conveyor belts and material handling systems
