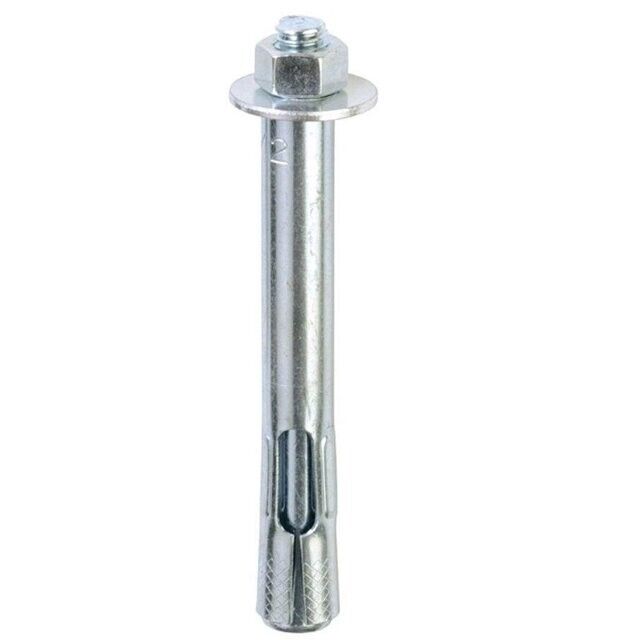

edge Anchor: 3 3/4 in Overall Lg, 3/8 in Dia, 3/8"-16 Thread Size, Steel, 25 PACK
Brand
REDHEAD
System of Measurement
Inch
Thread Size
3/8"-16
Overall Length
3-3/4 in
Anchor Diameter
3/8 in
Compatible Material
Concrete
Material
Steel
Material Grade/Class
Grade 2
Finish
Zinc Plated
Nut Width
0.5625 in
Washer Outside Diameter
0.812 in
Thread Length
2-5/8 in
Includes
Nut; Washer
Drill Bit Size
3/8 in
Seismic Approved
No
ICC Approved for Cracked Concrete
No
ICC Approved for Un-Cracked Concrete
Yes
Ultimate Shear Strength (4,000 psi Concrete)
3,151 lb
Ultimate Tension Strength (4,000 psi Concrete)
5,203 lb
Minimum Installation Torque
15 ft-lb
Maximum Installation Torque
30 ft-lb
Minimum Material Thickness
4 in
Maximum Material Thickness
1-3/4 in
Minimum Installation Depth
1-5/8 in
Maximum Ultimate Shear Strength
3,151 lb
Maximum Ultimate Tension Strength
3,556 lb
Display Qty
20
Display Sell UOM
PK
Industry Standards
FM Approved; ICC ESR-3782 C-STL, ZP 1/4” SS; ROHS Compliant Except for Grade 5; UL Listed
Manufacturer Location
Made in USA
UNSPSC
31162102
Country of Origin
USA (subject to change)
