VESTIL 200LB HYDRAULIC LIFT TABLE HT-02-1616A
VESTIL 200LB HYDRAULIC LIFT TABLE HT-02-1616A
Roll over image to zoom in Click on image to zoom
VESTIL 200LB HYDRAULIC LIFT TABLE HT-02-1616AVESTIL 200LB HYDRAULIC LIFT TABLE HT-02-1616A

VESTIL 200LB HYDRAULIC LIFT TABLE HT-02-1616A

Northside Material Brokers
Price:
$349.75

Description


***PLEASE CONTACT US FOR AN ACCURATE SHIPPING QUOTE***

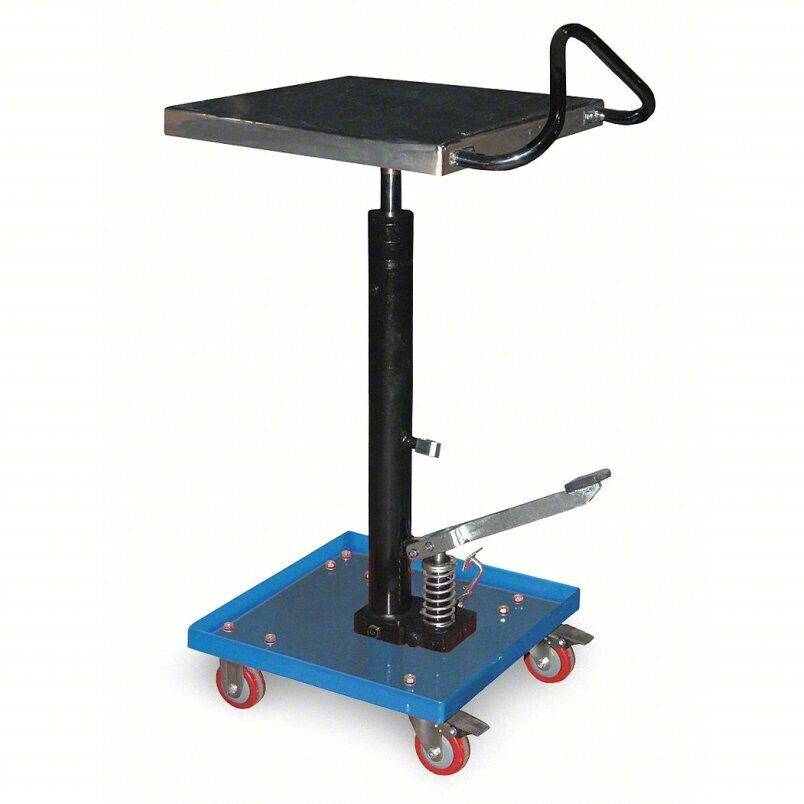

VESTIL Manual Mobile Post-Lift Table: 200 lb Load Capacity, 16 in x 16 in Platform

Product Description

Manual mobile post-lift tables have support posts that allow their platform to be raised or lowered. They have more open space below their platform than scissor-lift tables and are used for transferring and positioning dies and other large, heavy parts in manufacturing, repair, assembly, and other industrial tasks. The tables' hydraulic lifting mechanism is controlled with a foot pump, and they have brakes or floor locks that can be engaged to prevent the tables from moving unexpectedly.



Product Details


Brand
GRAINGER APPROVED
Load Capacity
200 lb
Minimum Lifting Height
31 in
Maximum Lifting Height
49 in
Platform Length
16 in
Platform Width
16 in
Platform Type
Solid
Platform Material
Stainless Steel
Wheel Diameter
4 in
Wheel Type
Tread on Core
Wheel/Tread Material
Polyurethane
Wheel Configuration
(2) Swivel with Brake, (2) Rigid
Brake Type
Side Pedal Brake
Lift Control
Foot Pump
Lift Mechanism
Hydraulic
Operation
Manual
Number of Lifting Posts
1
Handle Type
Ergonomic
Handle Height
31 in
Frame Material
Steel
Overall Height
31 in
Overall Length
19-1/2 in
Overall Width
16 in
UNSPSC
24101604
Country of Origin
China (subject to change)
